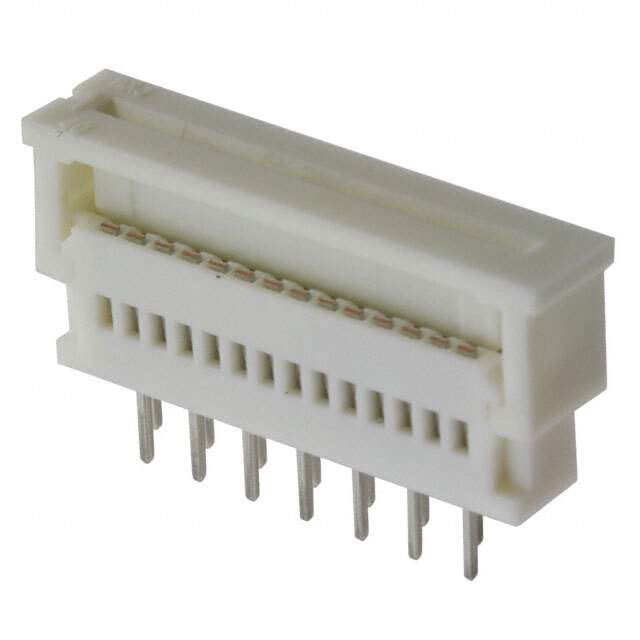

39-53-2145 Real Image
Same model may have multiple batches, images only for reference.

39-53-2145

Part No 39-53-2145
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.25mm (.049") Pitch FFC-FPC Connector, Through-Hole, Vertical, ZIF, 14 Circuits, Lead-free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 1 A
Depth 5 mm
Flammability Rating UL94 V-0
Gender Receptacle
Height 9.8 mm
Housing Color Natural
Housing Material Polybutylene
Insulation Resistance 500 MΩ
Lead Pitch 1.25 mm
Length 23.25 mm
Max Current Rating 1 A
Maximum Operating Temperature 80 °C
Min Operating Temperature -20 °C
Mount Through Hole
Number of Circuits 14
Number of Contacts 14
Number of Pins 14
Number of Poles 14
Number of Positions 14
Number of Rows 1
Orientation Vertical, Right Angle
Pitch 1.25 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 200 V
Voltage Rating (AC) 200 V
Voltage Rating (DC) 200 V
Win Source Part Number 1033498-39-53-2145
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-53-2145 CAD Model

Description

The Molex 1033498-39-53-2145 is a 1-row, 14-position vertical right angle receptacle FPC/FFC connector.

  • Pitch: 1.25 mm
  • Termination: Solder
  • Voltage Rating: 200 V
  • Current Rating: 1 A
  • Housing Material: Polybutylene
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Housing Color: Natural
  • Contact Resistance: 20 mΩ
  • Insulation Resistance: 500 MΩ
  • Height: 9.8 mm
  • Length: 23.25 mm
  • Depth: 5 mm
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Maximum Operating Temperature: 80 °C
