Same model may have multiple batches, images only for reference.

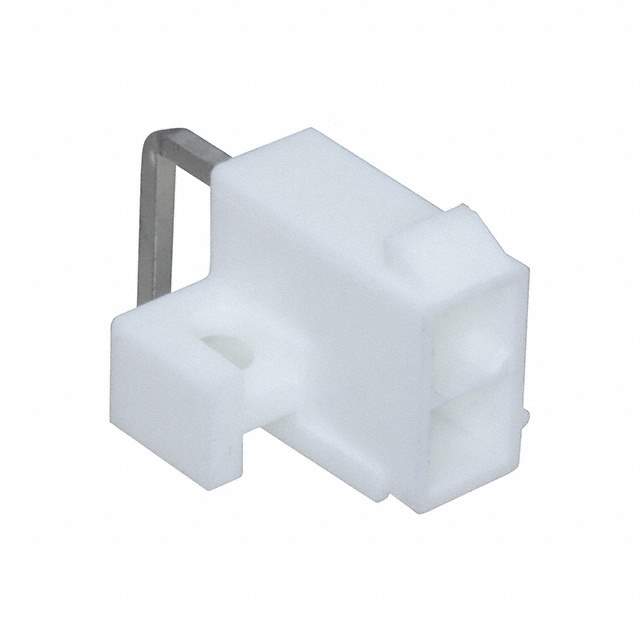

39-29-1027 Real Image
Same model may have multiple batches, images only for reference.

39-29-1027

Part No 39-29-1027
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2CKT R/a Mini Fit Header 556902A1210 Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Beige
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin PR
Current Rating 6 A
Depth 19.4 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Natural
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Pitch 4.2 mm
Length 15.4 mm
Material Brass
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Min Operating Temperature -40 °C
Number of Circuits 2
Number of Contacts 2
Number of Positions 2
Number of Rows 2
Orientation Right Angle, Vertical
Pitch 4.2 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 5.5 mm
Schedule B 8536695050
Termination Solder
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1039290-39-29-1027
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-29-1027 CAD Model

Description

The Molex, LLC 891000 is a 2 position female right angle/vertical circular connector housing.

  • Pitch: 4.2mm
  • Row Spacing: 5.5mm
  • Material: Brass with tin plating and a nylon housing
  • Voltage Rating: 600V
  • Current Rating: 6A
  • Contact Resistance: 10 mΩ
  • Insulation Resistance: 1 GΩ
  • RoHS Compliant: Yes
  • Low Halogen: Yes
  • Flammability Rating: UL94 V-0
  • Length: 15.4mm
  • Depth: 19.4mm
