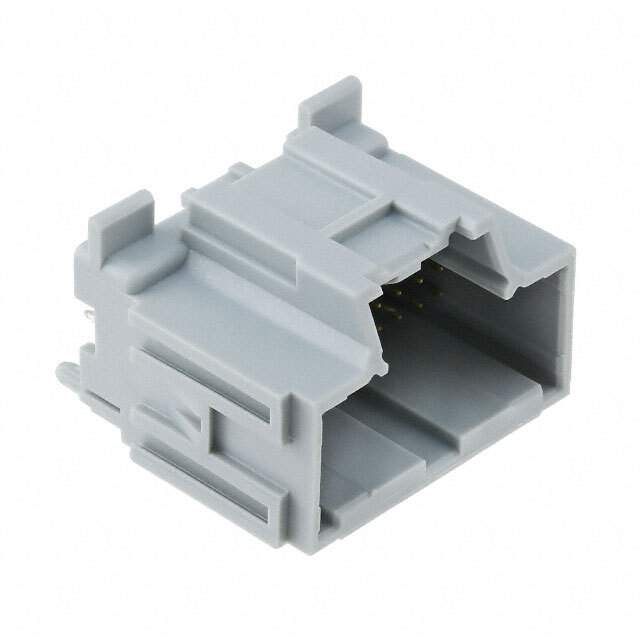

Same model may have multiple batches, images only for reference.

34690-0201

Name: 34690-0201
Brand: Molex, LLC
SKU: 1029787
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	34690-0201
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Stac64 Vertical Header Assembly, 20 Circuits, Polarization B, Gray, Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Grey
Contact Material	Brass
Contact Plating	Tin
Country of Origin	CN
Current Rating	10 A
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Housing Material	Thermoplastic
Maximum Operating Temperature	100 °C
Min Operating Temperature	-40 °C
Number of Circuits	20
Number of Positions	20
Number of Rows	2
Orientation	Vertical
Pitch	2.54 mm
Plating	Tin
RoHS	Compliant
Voltage Rating	500 V
Voltage Rating (DC)	500 V
Win Source Part Number	1029787-34690-0201
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 34690-0201 CAD Model

Alternative Products

Description

This circular connector housing falls under the category of circular connectors - housings and has a Win Source part number of 1029787-34690-0201.

Positions: 20
Pitch: 2.54mm
Color: Grey
Rows: 2
Contact Material: Brass
Voltage Rating: 500V
Current Rating: 10A
Gender: Male
Housing Material: Thermoplastic
Circuits: 20
Orientation: Vertical
Contact Plating: Tin
Plating: Tin
Alternative Parts (Cross-Reference): 34690-0160, 34690-0120, 146502-9, 10-89-7061, 103233-3, 104350-40346900201, and 346900201
Country of Origin: CN
Low Halogen: Yes
Supply and Demand Status: Shortage
RoHS Compliant: Yes
Maximum Operating Temperature: 100°C
Minimum Operating Temperature: -40°C
Voltage Rating (DC): 500V
Glow Wire: Non-Compliant
