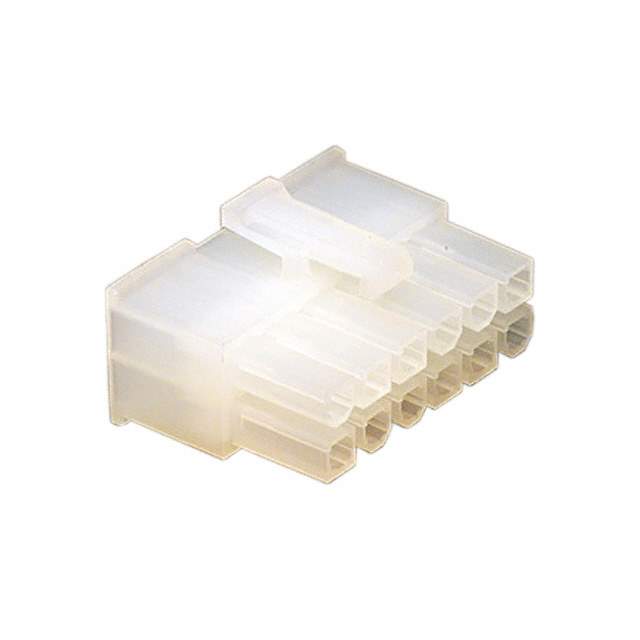

Same model may have multiple batches, images only for reference.

39-01-2120

Name: 39-01-2120
Brand: Molex, LLC
SKU: 1027667
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	39-01-2120
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Housing RCP 12 POS ST Cable Mount Bag
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CSA, TUV, UL
Color	Natural
Connector Type	Socket
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	13 A
Depth	19.6 mm
Flammability Rating	UL94 V-2
Gender	Receptacle
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	14.1 mm
Housing Color	Natural
Housing Material	Nylon
Lead Free	Yes
Length	26.4 mm
Material	Nylon
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	600 V
Max Voltage Rating (DC)	600.6 kV
Min Operating Temperature	-40 °C
Mount	Cable
Number of Contacts	12
Number of Pins	12
Number of Positions	12
Number of Rows	2
Orientation	Straight
Packaging	Bulk
Pitch	4.2 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Row Spacing	4.2 mm
Schedule B	8536695050, 8536695050
Termination	Crimp
Voltage Rating	600 V
Voltage Rating (AC)	250 V
Voltage Rating (DC)	250 V
Width	15.1 mm
Win Source Part Number	1027667-39-01-2120
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 39-01-2120 CAD Model

Alternative Products

Description

The 1027667-39-01-2120 is a 12-position, 2-row, crimp socket connector designed for use in circular connector housings.

Positions: 12
Rows: 2
Termination: Crimp
Pitch: 4.2mm
Voltage Rating: 600V
Housing Material: Nylon
Contact Resistance: 10mΩ
Approvals: CSA, TUV, and UL
RoHS Compliant: Yes
Manufacturer: Molex, LLC
Applications: Power supplies for consumer electronics and communication devices
