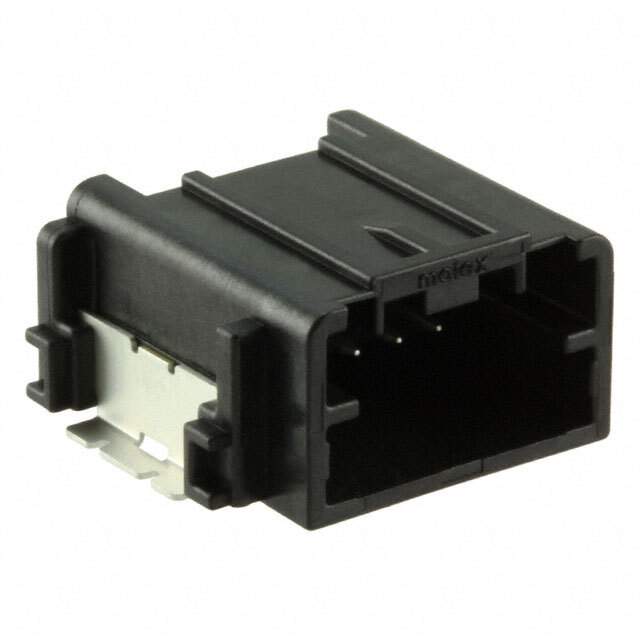

0349128040 Real Image
Same model may have multiple batches, images only for reference.

0349128040

Part No 0349128040
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2MM / Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.218" (5.55mm)
Insulation Height 0.372" (9.44mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive
Base Product Number 034912
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM10318DKR,349128040,WM10318TR,0349128-8040,34912-8040,WM10318CT,349128-8040
Standard Package 250
Win Source Part Number 1332896-0349128040
Ultra Librarian 3D Model Ultra Librarian 0349128040 CAD Model

Description

The 1332896-0349128040 header from Molex is a male blade connector designed for use in board-to-cable/wire applications.

  • Contact Type: Male Blade
  • Pitch: 0.079" (2.00mm)
  • Mounting Type: Surface Mount, Right Angle
  • Contact Finish: Tin
  • Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • Packaging: Reel
  • Standard Package: 250
  • Application: Automotive
