Same model may have multiple batches, images only for reference.

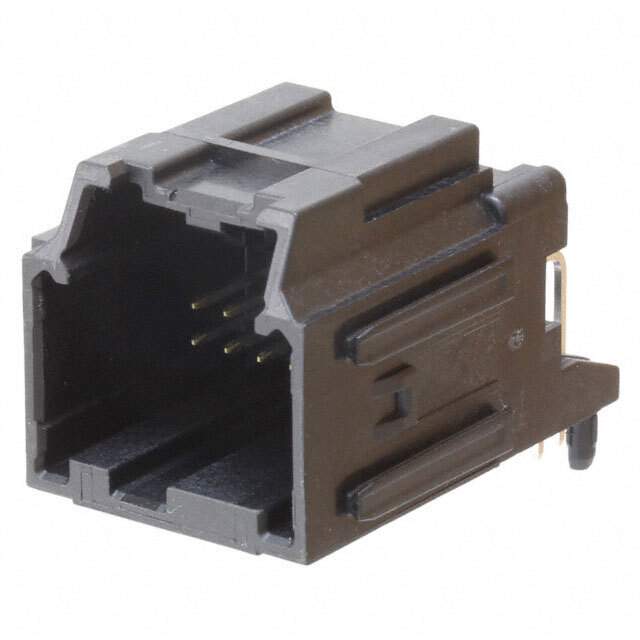

34691-6120 Real Image
Same model may have multiple batches, images only for reference.

34691-6120

Part No 34691-6120
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Stac64 Right-Angle Header Assembly, Plastic Pin-Alignment-Plate, 12 Circuits, Polarization A, Black, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Brass
Contact Plating Tin
Country of Origin CN
Current Rating 10 A
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 22.17 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 12
Number of Contacts 12
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 500 V
Voltage Rating (DC) 500 V
Win Source Part Number 1020411-34691-6120
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 34691-6120 CAD Model

Description

This male circular connector housing from Molex, LLC has 12 contacts and is right angled.

  • Contacts: 12
  • Orientation: Right Angled
  • Pitch: 2.54mm
  • Voltage Rating: 500V
  • Current Rating: 10A
  • Contact Plating: Tin
  • Popularity: Low
  • Category: Circular connectors - housings
  • Maximum Operating Temperature: 105°C
  • Minimum Operating Temperature: -40°C
  • RoHS Compliant: Yes
  • Voltage Rating: 500V
