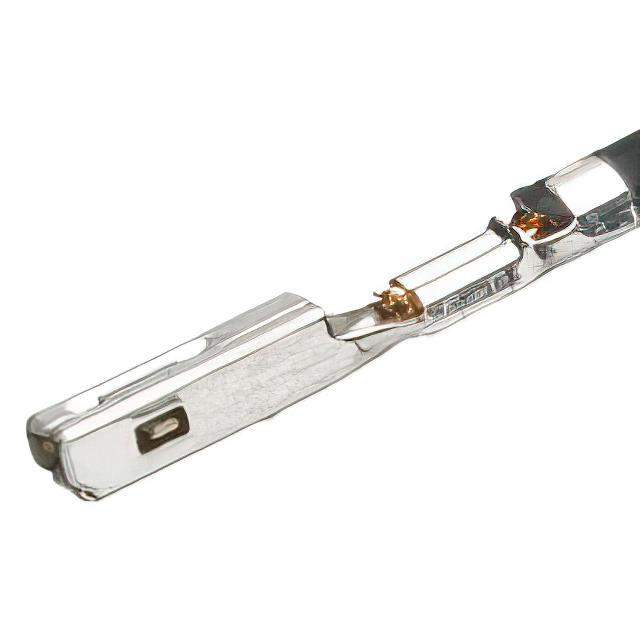

Same model may have multiple batches, images only for reference.

33012-3001

Name: 33012-3001
Brand: Molex, LLC
SKU: 960463
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	33012-3001
Manufacturer	Molex, LLC
Catalog	Terminals
Description	MX150 Female Terminal for Mat-Sealed Connectors, Tin Plating, 14 and 16 AWG, Left Reel Payoff
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Connector Type	Connector, Crimp, Power
Contact Material	Copper
Contact Plating	Tin
Country of Origin	US
Current Rating	22 A
Depth	4.4 mm
Gender	Female
Halogen Free	Low Halogen
Height	3.63 mm
Length	20.45 mm
Max Current Rating	22 A
Maximum Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Mount	Cable
Number of Contacts	1
Number of Pins	1
Orientation	Straight
Packaging	Cut Tape
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050, 8536695050
Shielding	Unshielded
Termination	Crimp
Voltage Rating	14 V
Voltage Rating (DC)	250 V
Wire/Cable Gauge	16 AWG
Working Voltage	250 V
Win Source Part Number	960463-33012-3001
Categories	Terminals
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 33012-3001 CAD Model

Description

The Molex 960463-33012-3001 is a crimp power connector with a female gender.

Contact Plating: tin
Contact Material: copper
Length: 20.45mm
Height: 3.63mm
Depth: 4.4mm
Halogen Content: low halogen
RoHS: compliant
Maximum Operating Temperature: 125°C
Maximum Voltage Rating: 250V DC
