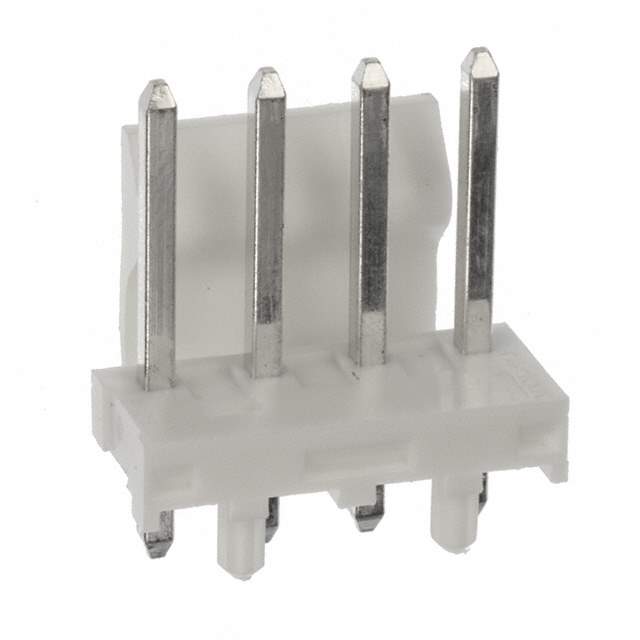

26644040 Real Image
Same model may have multiple batches, images only for reference.

26644040

Part No 26644040
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series KK396, 42491
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.720" (18.29mm)
Insulation Height 0.446" (11.33mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 002664
Other Names 26-64-4040-E,26644040-E,0026-64-4040,26-64-4040,WM4653,0026644040-E,23-0026644040,0026-64-4040-E,26644040,WM4653
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293223-26644040
Ultra Librarian 3D Model Ultra Librarian 26644040 CAD Model

Description

The Molex KK396 electronic component is a male pin header with 4 positions.

  • Product Name: Molex KK396
  • Positions: 4
  • Pin Type: Male
  • Applications: Automotive, industrial, medical, and telecommunications
  • Contact Material: Brass
  • Voltage Rating: - volts
  • Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Pitch: 0.156 inches
  • Contact Finish: Tin
  • Mounting: Through Hole
  • Shrouding: 1 Wall
  • Manufacturer: Molex
  • Win Source Part Number: 1293223
