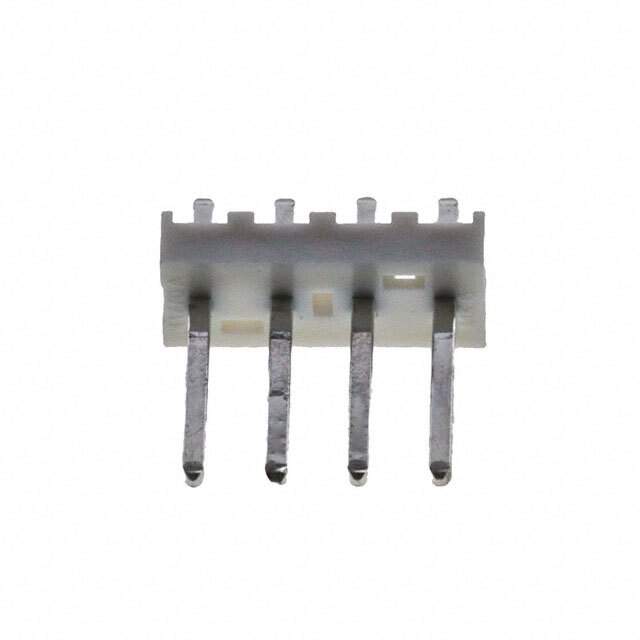

Same model may have multiple batches, images only for reference.

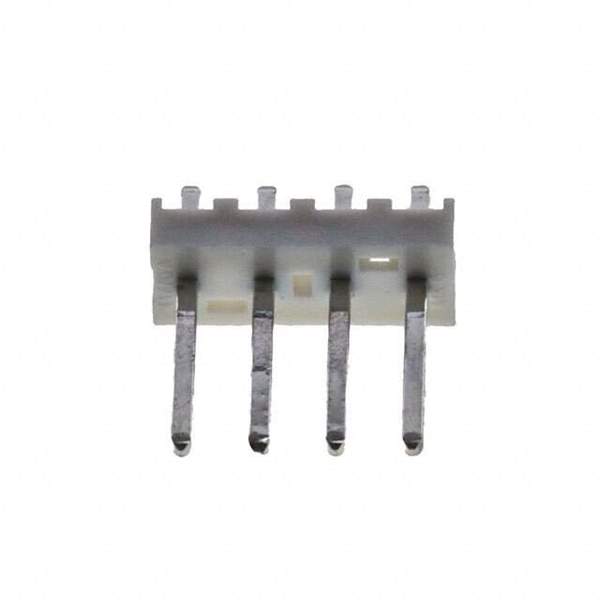

26-60-2040 Real Image
Same model may have multiple batches, images only for reference.

26-60-2040

Part No 26-60-2040
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description KK 396 Header, Vertical, without Peg, 4 Circuits, Tin (Sn) Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 7 A
Depth 6.35 mm
Flammability Rating UL94 V-0
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Polyester
Insulation Resistance 50 GΩ
Lead Pitch 3.96 mm
Length 15.7 mm
Maximum Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Vertical
Packaging Bulk
Pitch 3.96 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 966972-26-60-2040
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 26-60-2040 CAD Model

Description

This electronic component is a circular connector housing manufactured by Molex, LLC.

  • Win Source Part Number: 966972-26-60-2040
