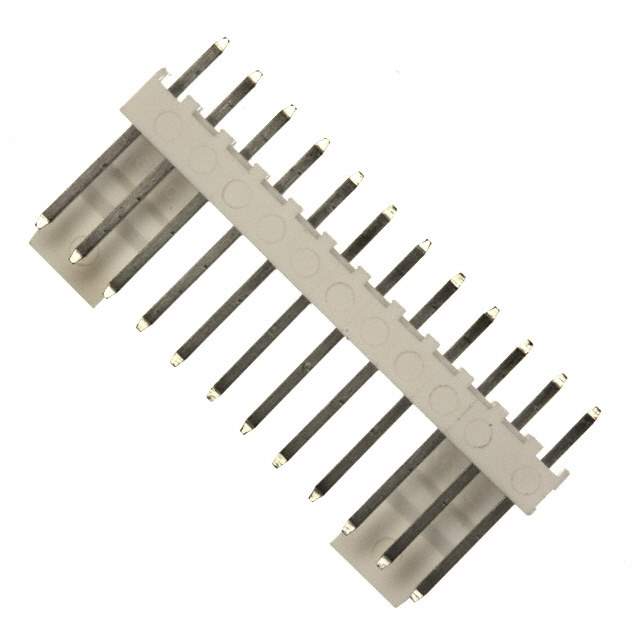

Part No 0022272121
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.54MM / Connector Header Through Hole 12 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002227
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 22272121,23-0022272121,WM4121-ND,22-27-2121-P,22-27-2121,WM4121,AE-6410-12A(222)
Standard Package 1
Win Source Part Number 1332449-0022272121
Ultra Librarian 3D Model Ultra Librarian 0022272121 CAD Model

Description

The Molex electronic component is a connector with 12 positions and a header type.

  • Manufacturer: Molex
  • Win Source Part Number: 1332449-0022272121
  • Positions: 12
  • Type: Header
  • Contact: Male Pin
  • Fastening Type: Friction Lock
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Natural
  • Pitch for Mating: 0.100" (2.54mm)
  • Contact Finish Thickness (Mating and Post): 100.0µin (2.54µm)
  • Insulation Height: 0.461" (11.70mm)
  • Overall Contact Length: 0.560" (14.22mm)
  • Shrouding: Shrouded - 1 Wall
  • Applications: Automotive, General Purpose, Medical, and Telecommunications
