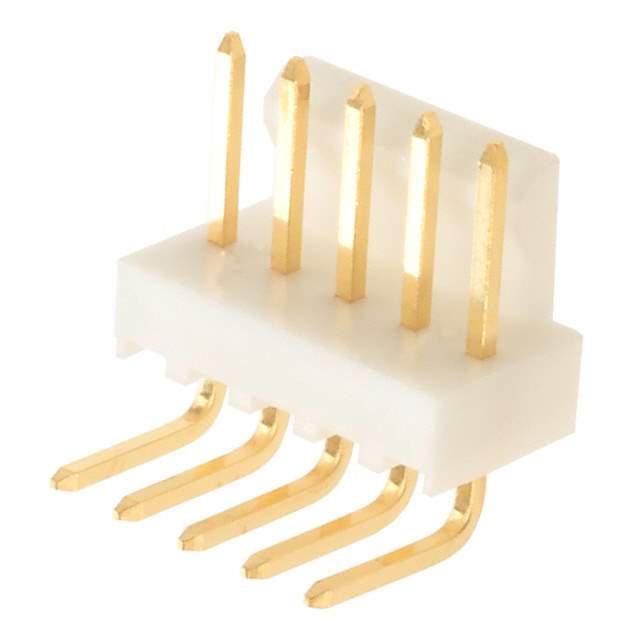

0022122054

Name: 0022122054
Brand: Molex, LLC
SKU: 1333047
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0022122054
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 5POS 2.54MM / Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 1 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.141" (3.58mm)
Insulation Height	0.250" (6.35mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Insulation Color	White
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	002212
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM2714-NDR,22-12-2054,WM2714,0022-12-2054-P,0022122054-P,22122054-P,22122054,0022-12-2054,22-12-2054-P,A-7478-05A241
Standard Package	8,000
Win Source Part Number	1333047-0022122054
Ultra Librarian 3D Model	Ultra Librarian 0022122054 CAD Model

Description

The Molex 1333047-0022122054 is a 5-position header connector with a male pin contact type.

Mounting Style: Through Hole
Orientation: Right Angle
Contact Material: Brass
Contact Finish: Gold
Insulation Material: Polyamide (PA), Nylon
Insulation Color: White
Connector Type: Header
Style: Board to Board or Cable
Applications: Automotive, General Purpose, Medical, and Telecommunications
Voltage Rating: Not Specified
Mated Stacking Heights: Not Specified
Ingress Protection: Not Specified
Contact Finish Thickness - Mating: 20.0μin (0.51μm)
Contact Finish Thickness - Post: 100.0μin (2.54μm)
Pitch - Mating: 0.100" (2.54mm)
Temperature Range - Operating: Not Specified
Compliance: ROHS3 Compliant
