0022057048

Get a Quote

Part No	0022057048
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors

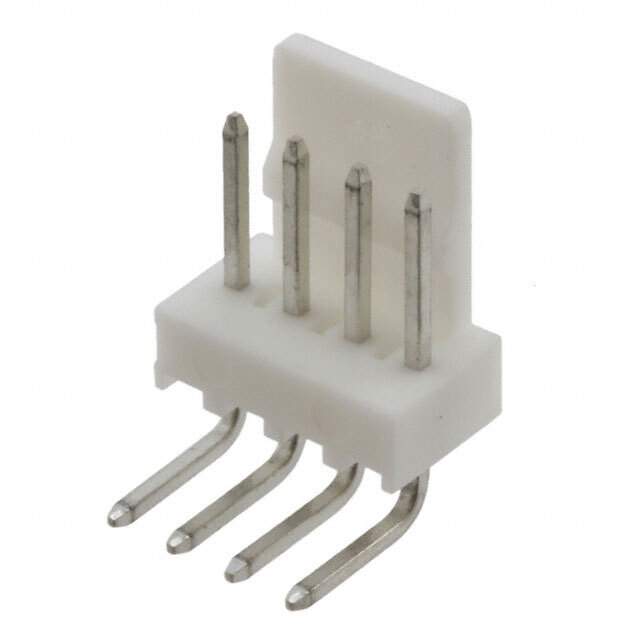

Description	CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	KK254, 7395
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.150" (3.81mm)
Insulation Height	0.228" (5.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66) , Nylon 6/6
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	002205
Standard Package	12,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338651-0022057048
Ultra Librarian 3D Model	Ultra Librarian 0022057048 CAD Model

Description

The Molex KK254, 7395 series is a header connector with a pitch of 0.100" (2.54mm) and 4 positions.

Pitch: 0.100" (2.54mm)
Positions: 4
Connector Type: Header
Contact Gender: Male Pin
Positions Loaded: All
Number of Rows: One
Termination: Solder
Fastening Type: Friction Lock
Mounting Type: Through-Hole, Right Angle
Features: Shrouded 1-Wall
Contact Material: Brass
Insulation Material: Polyamide (PA66), Nylon 6/6
Insulation Color: Natural
Contact Finish: Tin
Contact Finish Thickness: 60.0µin (1.52µm)
