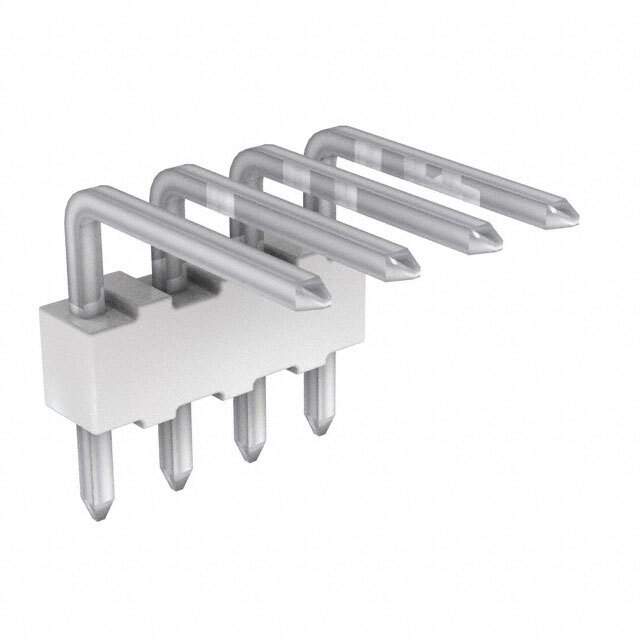

0022052041 Real Image
Same model may have multiple batches, images only for reference.

0022052041

Part No 0022052041
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.369" (9.37mm)
Contact Length - Post 0.124" (3.15mm)
Insulation Height 0.130" (3.30mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002205
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A-4094-04A197,22052041-P,22-05-2041-P,0022052041-P,WM4102-NDR,22052041,0022-05-2041,0022-05-2041-P,22-05-2041,WM4102
Standard Package 16,000
Win Source Part Number 1332396-0022052041
Ultra Librarian 3D Model Ultra Librarian 0022052041 CAD Model

Description

The Molex rectangular connector is a header connector that is terminated with solder.

  • Manufacturer: Molex
  • Connector Type: Header
  • Termination: Solder
  • Pin Gender: Male
  • Number of Positions: 4
  • Packaging: Bulk
  • Fastening Type: Push-Pull
  • Material Flammability Rating: UL94 V-0
  • Applications: Automotive, General Purpose, Medical, Telecommunications
  • Standard Package: 16,000
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.100" (2.54mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 60.0µin (1.52µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 60.0µin (1.52µm)
  • Insulation Color: White
  • Shrouding: Unshrouded
  • Contact Length - Post: 0.124" (3.15mm)
  • Insulation Height: 0.130" (3.30mm)
  • Contact Shape: Square
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
