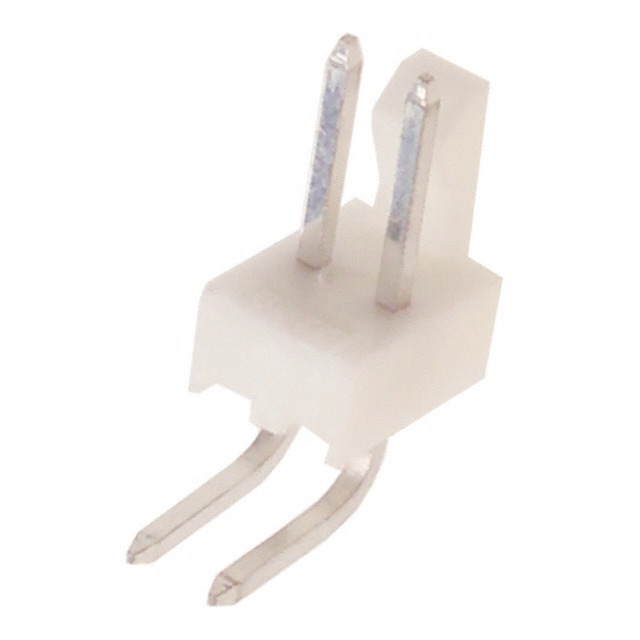

22-05-3021 Molex, LLC
Same model may have multiple batches, images only for reference.

22-05-3021

Part No 22-05-3021
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.54mm (.100) Pitch KK® Solid Header, Right Angle, with Friction Lock, 2 Circuits, Tin (Sn) Plating | CONN HEADER R/A 2POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.141" (3.58mm)
Insulation Height 0.256" (6.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1123034-22-05-3021
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 22-05-3021 CAD Model

Description

The Molex 1123034-22-05-3021 is a 2-position through-hole right angle header connector designed for board-to-board or cable applications.

  • Number of Positions: 2
  • Mounting Type: Through-hole
  • Orientation: Right Angle
  • Application: Board-to-board or cable applications
  • Pitch: 0.100" (2.54mm)
  • Shrouded: With 1 wall
  • Contact Type: Male pin
  • Contact Material: Brass
  • Termination: Soldering
  • Fastening Type: Friction lock
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: White
  • Contact Finish (Mating and Post): Tin with a thickness of 100.0μin (2.54μm)
  • Operating Temperature Range: Not specified
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
