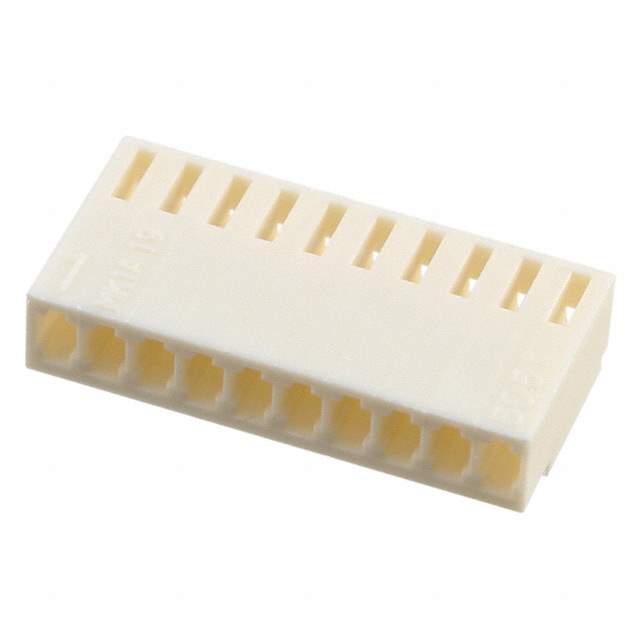

22-01-1102 Real Image
Same model may have multiple batches, images only for reference.

22-01-1102

Part No 22-01-1102
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description 2.50mm Pitch KK WTB Housing Female Friction Lock for 2759/5159 Crimp Terminals 10 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Nylon, Polyamide
Color Natural
Contact Gender Female
Country of Origin TW
Depth 12.7 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Length 25.5 mm
Material Nylon
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 2.5 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Width 6.6 mm
Win Source Part Number 1035590-22-01-1102
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 22-01-1102 CAD Model

Description

The Molex 1035590-22-01-1102 is a 10-position, 2.5mm pitch, straight receptacle connector.

  • Color: Natural
  • Housing Material: Nylon
  • Termination Method: Crimping
  • Contacts: 10
  • Length: 25.5mm
  • Width: 6.6mm
  • Depth: 12.7mm
  • Halogen Content: Low Halogen
  • Lead-Free: Yes
  • Maximum Operating Temperature: 105°C
  • Maximum Voltage Rating: 250.25kV DC
  • RoHS Compliant: Yes
  • Used in: OEM Parts (0-9)
  • Alternative Parts (Cross-Reference): 1-1969442-0, 51103-1000, 1-2110992-0, and more
