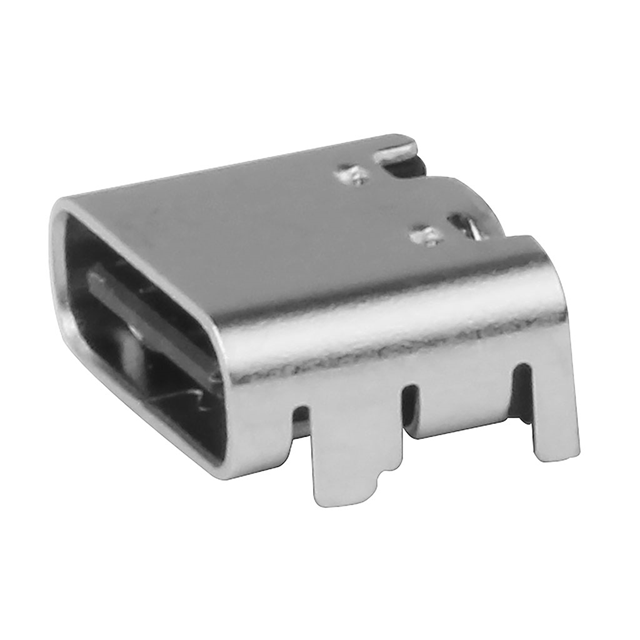

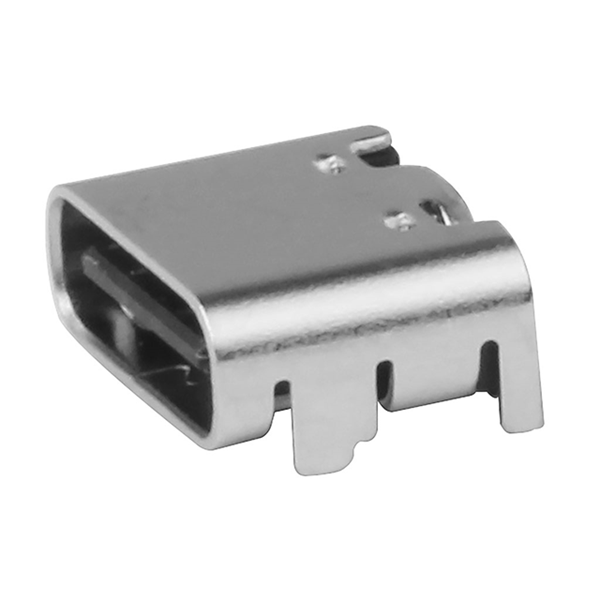

2171790001

Name: 2171790001
Brand: Molex, LLC
SKU: 1349656
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2171790001
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCP USB2.0 TYP C 24P SMD RA / USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Molex
Series	217179
Package	Tape & Reel
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24 (16+8 Dummy)
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Termination	Solder
Temperature Range - Operating	-40°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	5A
Voltage - Rated	30VAC/DC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Base Product Number	217179
Standard Package	1,200
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349656-2171790001
Ultra Librarian 3D Model	Ultra Librarian 2171790001 CAD Model

Description

This USB-C (USB TYPE-C) Connector Assembly is a shielded receptacle with 24 contacts (16+8 Dummy) for USB 2.0 and is manufactured by Molex with the base product number 217179.

Material: Steel and stainless
Flammability Rating: UL94 V-0
Rated Voltage: 30VAC/DC
Temperature Range: -40°C to 85°C
Mounting: Surface mount and right angle through hole
Mounting Feature: Horizontal
Mating Cycle: 10000
Package: Tape and reel
