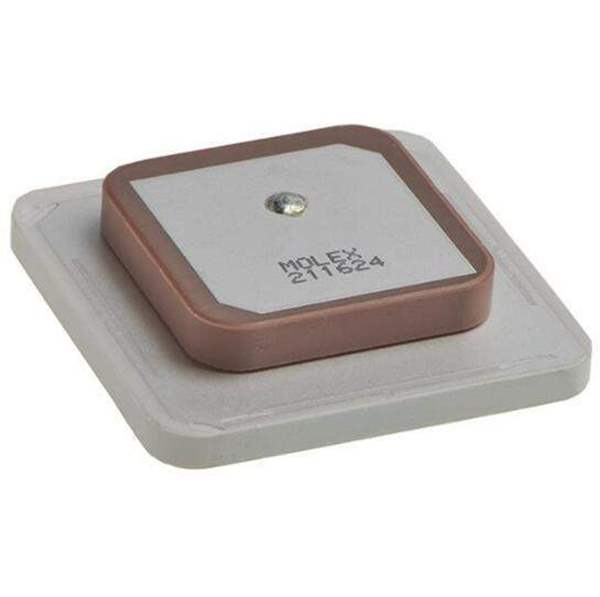

2116240001

Part No 2116240001
Manufacturer Molex, LLC
Catalog RFID Antennas
Description GPS L1/L5 & GLONASS 36MM STACKED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category RF and Wireless RF Antennas
Package Box
Product Status Active
Win Source Part Number WS1206906-2116240001
Package Tray
Product Status Active
RF Family/Standard Navigation
Frequency Group UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) 1.176GHz, 1.575GHz, 1.602GHz
Frequency Range 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz, 1.597GHz ~ 1.607GHz
Antenna Type Ceramic Patch
Number of Bands 3
Return Loss -10dB
Gain 2.1dBi, 4.5dBi, 4.2dBi
Termination Solder
Grade -
Mounting Type Adhesive
Height (Max) 0.276" (7.00mm)
Applications GLONASS, GPS
Ultra Librarian 3D Model Ultra Librarian 2116240001 CAD Model

Description

GPS L1/L5 & GLONASS 36MM STACKED
