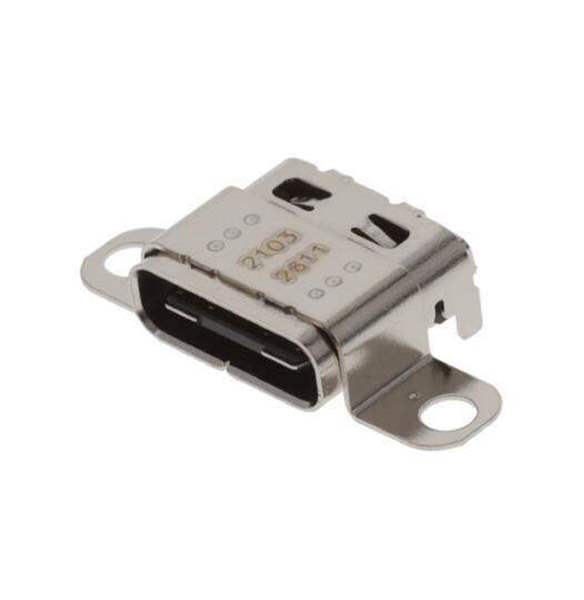

2057141001Molex
Same model may have multiple batches, images only for reference.

2057141001

Part No 2057141001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description USB TYPE C WITH SCREW HOLE GM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Series 205714
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Current Rating (Amps) 0.25A, 1.25A, 5A
Win Source Part Number WS1206841-2057141001
Ultra Librarian 3D Model Ultra Librarian 2057141001 CAD Model

Description

USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
