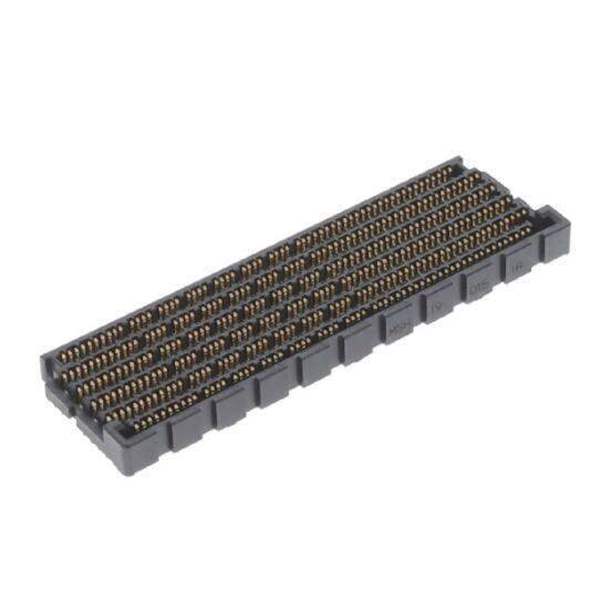

2048430001

Part No 2048430001
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description CONN SELF-MATE 699POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Series Mirror Mezz 204843
Package Tape & Reel (TR) Cut Tape (CT)
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 699
Mounting Type Surface Mount
Features Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 5mm, 8mm
Height Above Board 0.183" (4.65mm)
Win Source Part Number WS1206823-2048430001
Ultra Librarian 3D Model Ultra Librarian 2048430001 CAD Model

Description

699 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
