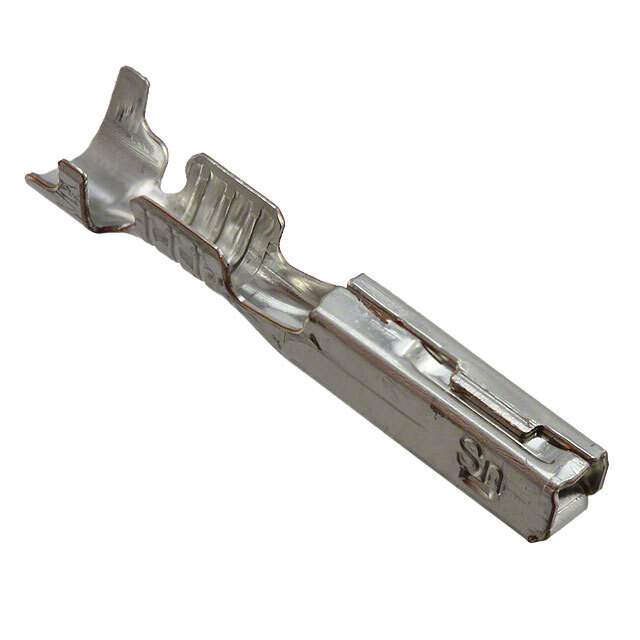

Same model may have multiple batches, images only for reference.

19420-0002

Name: 19420-0002
Brand: Molex, LLC
SKU: 1158005
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	19420-0002
Manufacturer	Molex, LLC
Catalog	Terminals
Description	MX150L Female Terminal for 18-22 AWG Wire, Tin Plated, Metal Strip Carrier
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Case / Package	125
Color	Black
Connector Type	Connector, Crimp, PCB, Power, Signal
Contact Material	Copper
Contact Plating	Tin
Country of Origin	US
Current Rating	18 A
Depth	4.55 mm
Flammability Rating	UL94 V-0
Gender	Female
Halogen Free	Low Halogen
Height	3.63 mm
Length	20.27 mm
Max Operating Temperature	120 °C
Min Operating Temperature	-55 °C
Mount	Cable
Number of Contacts	1
Number of Rows	1
Orientation	Straight
Packaging	Cut Tape
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V
Voltage Rating (AC)	600 V
Wire/Cable Diameter	2.74 mm
Wire/Cable Gauge	18 AWG
Wire Gauge (Max)	18 AWG
Wire Gauge (Min)	22 AWG
Win Source Part Number	1158005-19420-0002
Categories	Terminals
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 19420-0002 CAD Model

Description

The Crimp PCB Power Signal Connector from Molex, LLC is a single-row, female connector that features a crimp termination and a tin contact plating.

Voltage Rating: 600 V
Current Rating: 18 A
Length: 20.27 mm
Height: 3.63 mm
Depth: 4.55 mm
Shielded: Unshielded
Mount: Cable
RoHS Compliant: Yes
