Same model may have multiple batches, images only for reference.

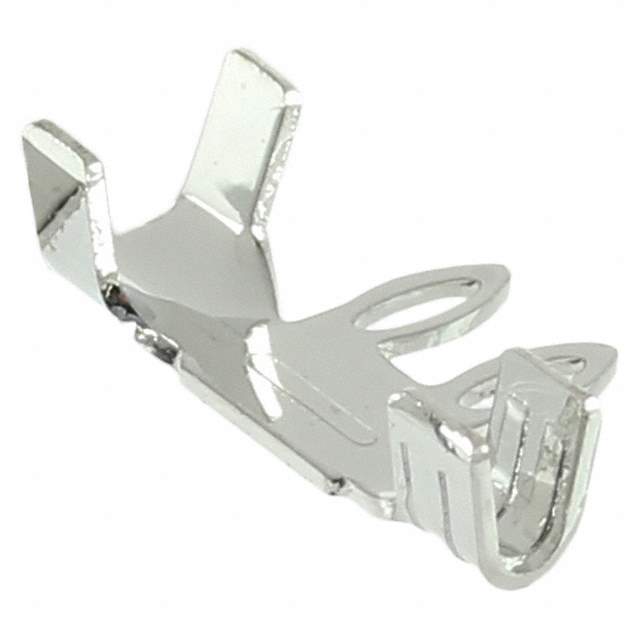

1726770200 Real Image
Same model may have multiple batches, images only for reference.

1726770200

Part No 1726770200
Manufacturer Molex, LLC
Catalog Terminals
Description CONN TERM WTB 26-28AWG TIN
Datasheet
1726770200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire to Board Connectors
Mfr Molex, LLC
Series SolderRight
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Wire to Board
Insulation Diameter 0.047" ~ 0.051" (1.19mm ~ 1.30mm)
Length - Overall 0.310" (7.87mm)
Wire Gauge 26-28 AWG
Contact Material Brass
Contact Finish Tin
Base Product Number 172677
Standard Package 19,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 905496-1726770200
Ultra Librarian 3D Model Ultra Librarian 1726770200 CAD Model

Description

The 905496-1726770200 is a wire-to-board connector from Molex, LLC.

  • Series: SolderRight
  • Wire Gauge: 26-28 AWG
  • Contact Finish: Tin
  • Contact Material: Brass
  • Package: Tape and Reel or Cut Tape
  • Package Quantity: 19,000 pcs
  • Overall Length: 0.310" (7.87mm)
  • Insulation Diameter: 0.047" to 0.051" (1.19mm to 1.30mm)
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS Code: 8536.90.4000
