Same model may have multiple batches, images only for reference.

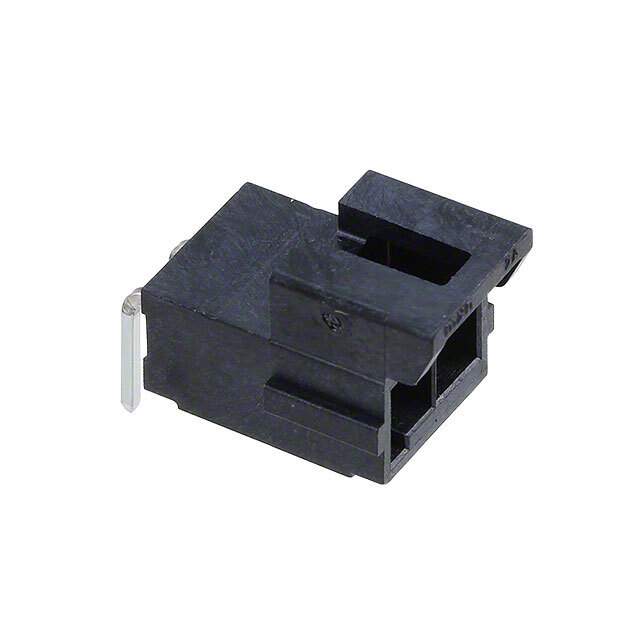

1723101202 Real Image
Same model may have multiple batches, images only for reference.

1723101202

Part No 1723101202
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 3.5MM / Connector Header Through Hole, Right Angle 2 position 0.138" (3.50mm)
Datasheet
1723101202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Ultra-Fit 172310
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.353" (8.96mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 120°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 400V
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number 172310
Standard Package 175
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340907-1723101202
Ultra Librarian 3D Model Ultra Librarian 1723101202 CAD Model

Description

The Molex Ultra-Fit 172310 is a male pin header connector that is part of the rectangular connector headers category.

  • Product Name: Ultra-Fit 172310
  • Manufacturer: Molex
  • Category: Rectangular Connector Headers
  • Positions: 2
  • Features: Board Guide
  • Application: Board-to-Cable/Wire
  • Pitch: 0.138 inches
  • Package: Tray
  • Standard Package: 175
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
