Same model may have multiple batches, images only for reference.

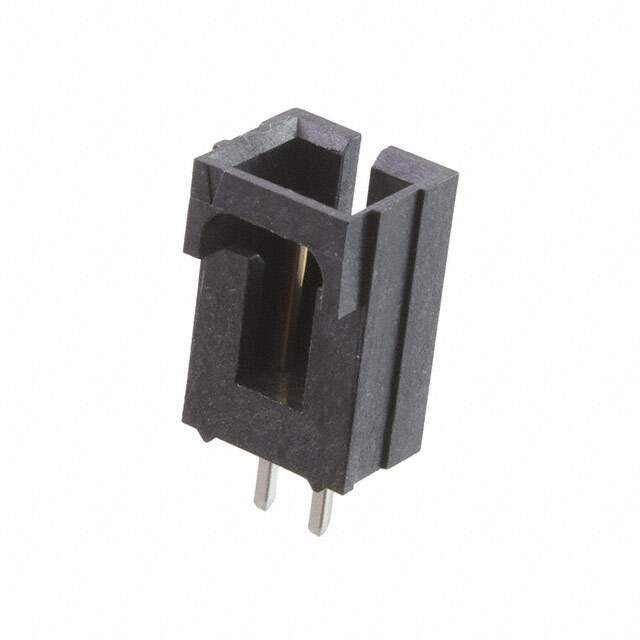

1719710102 Real Image
Same model may have multiple batches, images only for reference.

1719710102

Part No 1719710102
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Datasheet
1719710102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP)
Features Polarizing Key
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose
Base Product Number 171971
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 171971-0102,WM22649
Standard Package 73
Win Source Part Number 1333068-1719710102
Ultra Librarian 3D Model Ultra Librarian 1719710102 CAD Model

Description

The Molex 1333068-1719710102 connector is a board to cable/wire style header type connector with 2 positions and a pitch of 0.100 inches (2.54mm).

  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Material: Brass
  • Contact Finish Mating: Gold
  • Contact Finish Thickness Mating: 15.0µin (0.38µm)
  • Contact Finish Post: Tin
  • Contact Finish Thickness Post: 78.7µin (2.00µm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Package: Tube
  • Units: 73
  • Temperature Range: -40°C to 105°C
