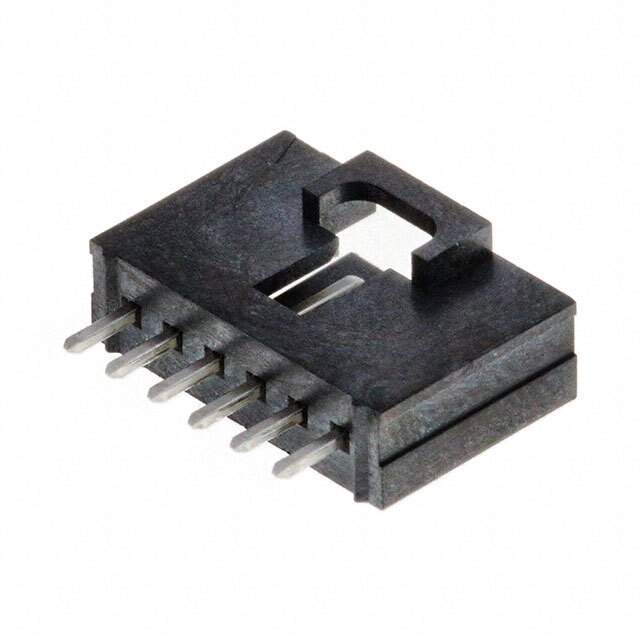

Same model may have multiple batches, images only for reference.

1719710006

Name: 1719710006
Brand: Molex, LLC
SKU: 1350427
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1719710006
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Datasheet	1719710006 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	SL 171971
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Polarizing Key
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose
Base Product Number	171971
Standard Package	30
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350427-1719710006
Ultra Librarian 3D Model	Ultra Librarian 1719710006 CAD Model

Description

The SL 171971 series male pin header connector is a polarized key connector with 6 positions.

Positions: 6
Application: General Purpose
Material: Brass
Voltage Rating: 250V
Termination: Solder
Mounting Type: Through Hole
Holder Type: Latch
Contact Finish: Tin
Contact Finish Thickness: 100.0μin (2.54μm)
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Package Type: Tube
Design: Shrouded 4-Wall
Post Contact Length: 0.130" (3.30mm)
Mating Contact Length: 0.240" (6.10mm)
Operating Temperature: -40°C to 105°C
