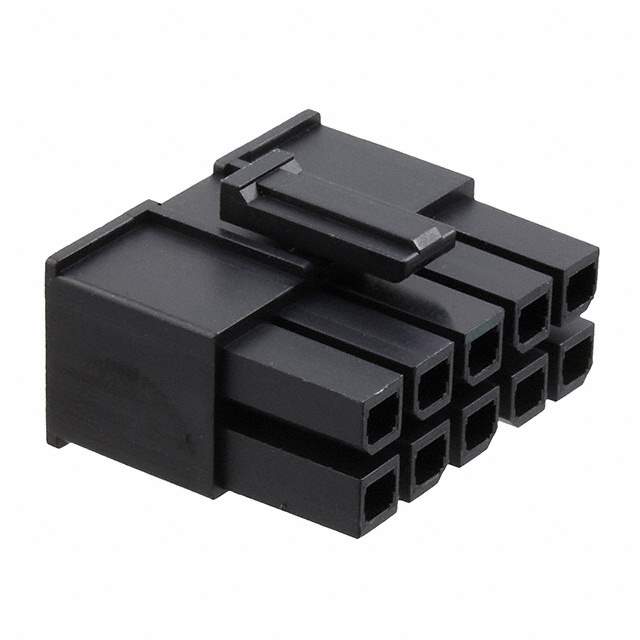

The Molex 171692-0110 is a Micro-Fit 3.0 receptacle housing used for creating wire-to-board connections. It is a component of the Micro-Fit 3.0 connector system, recognized for its space-saving design and ability to handle relatively high current. This housing is designed for robust and dependable connections across numerous applications.

Applications:

• Consumer electronics
• Automotive systems
• Industrial automation
• Medical equipment
• Data networking

Features:

• Micro-Fit 3.0 design
• 10 Circuits
• Single Row
• High temperature thermoplastic construction
• Positive locking mechanism

Benefits:

• Reduces overall space requirements on the PCB
• Provides a stable and secure electrical connection
• Offers long-term durability and reliability
• Prevents accidental disconnections in demanding environments
• Can withstand elevated temperatures during soldering and operation

Additional Details:

The 171692-0110 housing is designed to be compatible with Micro-Fit 3.0 headers. The housing material ensures it can withstand reflow soldering. Its positive locking feature delivers a clear indication when a secure connection is achieved. The datasheet provides essential specifications such as voltage/current ratings, material flammability, and other pertinent details.
