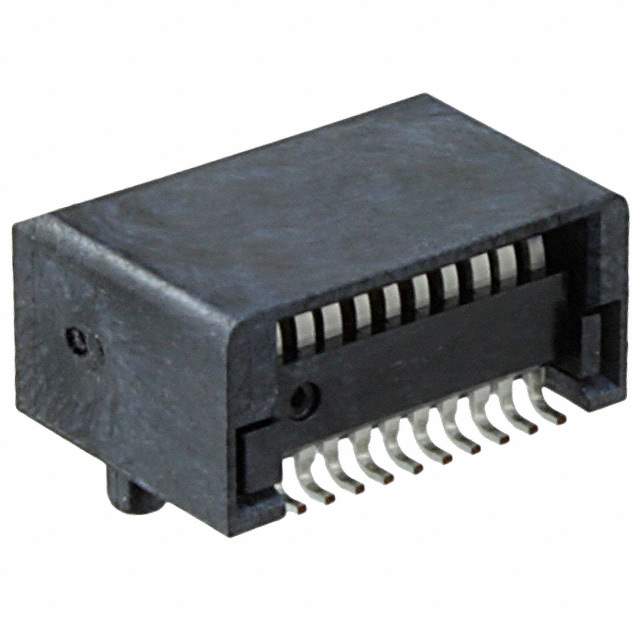

1703820002 Real Image
Same model may have multiple batches, images only for reference.

1703820002

Part No 1703820002
Manufacturer Molex, LLC
Catalog Pluggable Connectors
Description CONN ZSFP+ RCPT 20POS SLD RA SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 16 Weeks
Features 20 Position zSFP+ Receptacle Connector Solder Surface Mount, Right Angle
Manufacturer Molex, LLC
Series 170382
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name 170382
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM6177DKR, 170382-0002, WM6177TR, WM6177-ND, WM6177, WM6177CT
Quantity per package 480
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905459-1703820002
Ultra Librarian 3D Model Ultra Librarian 1703820002 CAD Model

Description

The Molex 905459-1703820002 is a 20 position zSFP+ receptacle connector that is designed for use in a wide range of applications, including telecommunications, data centers, and high-speed networking.

  • Number of Positions: 20
  • Connector Type: zSFP+ Receptacle
  • Mounting Type: Solder Surface Mount, Right Angle
  • Packaging: Reel
  • Pitch: 0.5mm
  • Flame Retardant Rating: UL94 V-0
  • Current Rating: amps
  • REACH: Unaffected
