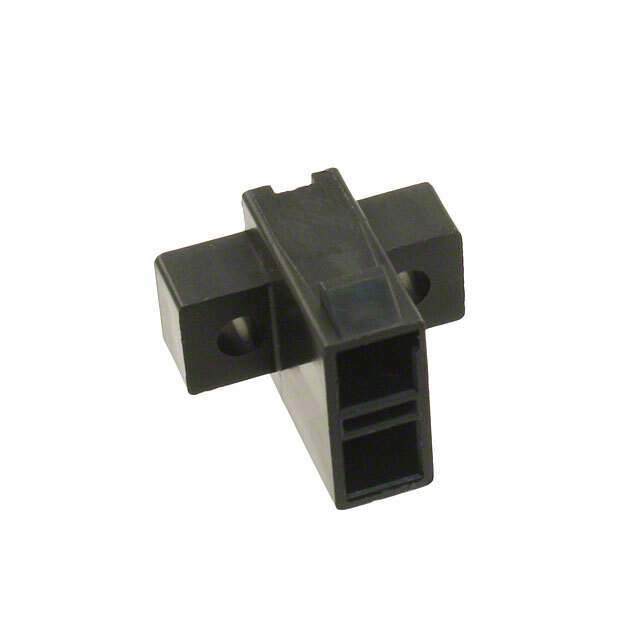

0015977024

Name: 0015977024
Brand: Molex, LLC
SKU: 1348723
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0015977024
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS / Connector Header Through Hole 2 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Mini-Fit TPA 30069
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.217" (5.51mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.504" (12.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass Alloy
Insulation Material	Polyester
Features	Mounting Flange
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, Industrial, Telecommunications
Base Product Number	001597
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348723-0015977024
Ultra Librarian 3D Model	Ultra Librarian 0015977024 CAD Model

Description

The Mini-Fit TPA 30069 series is a male pin header rectangular connector from Molex with 2 positions.

Mounting Feature: Mounting Flange
Mounting: Through-hole
Rows: 2
Style: Board to Cable/Wire
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
