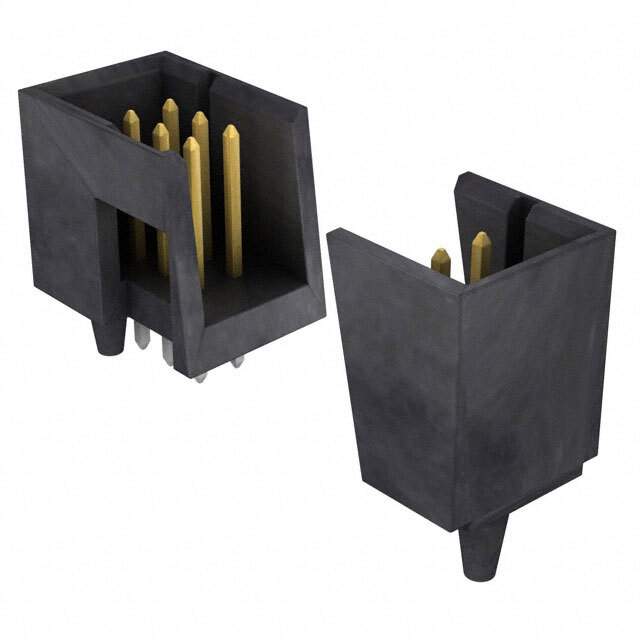

0015477610

Name: 0015477610
Brand: Molex, LLC
SKU: 1333010
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0015477610
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.315" (8.00mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.570" (14.48mm)
Insulation Height	0.475" (12.07mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Guide
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number	001547
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM7196,001547-7610,15477610,A-70568-0037,01547-7610,15-47-7610,1547-7610
Standard Package	27
Win Source Part Number	1333010-0015477610
Ultra Librarian 3D Model	Ultra Librarian 0015477610 CAD Model

Description

This is a rectangular connector from Molex with a Win Source part number of 1333010-0015477610.

Packaging: Tube
Positions: 10
Connector Type: Header
Contact Type: Male Pin
Positions Loaded: All
Rows: 2
Termination: Solder
Fastening Type: Latch Holder
Contact Material: Copper Alloy
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 15.0μin (0.38μm)
Contact Finish-Post: Tin
Contact Finish Thickness-Post: 74.8μin (1.90μm)
Insulation Color: Black
Shrouding: Shrouded - 4 Wall
Row Spacing-Mating: 0.100" (2.54mm)
Contact Length-Post: 0.130" (3.30mm)
Overall Contact Length: 0.570" (14.48mm)
Insulation Height: 0.475" (12.07mm)
Contact Shape: Square
Temperature Range: Not Specified
ECCN: EAR99
HTSUS: 8536.69.4040
Base Product Number: 001547
RoHS Status: ROHS3 Compliant
