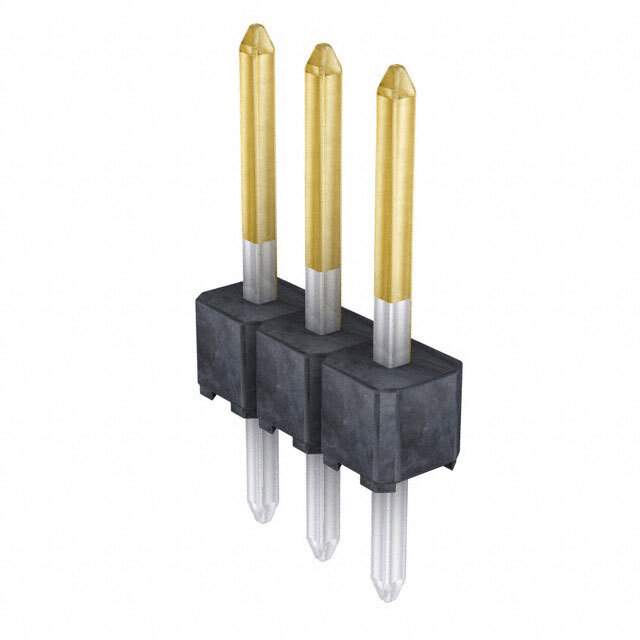

0901200923 Real Image
Same model may have multiple batches, images only for reference.

0901200923

Part No 0901200923
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features Connector Header Through Hole 3 position 0.100" (2.54mm)
Manufacturer Molex, LLC
Series C-Grid III 90120
Package Tray
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name 090120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 090120-0923, 0901200923-ND, 90120-0923, 901200923, WM12813
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908650-0901200923
Ultra Librarian 3D Model Ultra Librarian 0901200923 CAD Model

Description

Molex, LLC's C-Grid III 90120 series connector header is a through-hole component with 3 positions and a pitch of 0.100 inches (2.54mm).

  • Series: C-Grid III 90120
  • Positions: 3
  • Pitch: 0.100 inches (2.54mm)
  • Operating Temperature Range: -55 degrees Celsius to 125 degrees Celsius
  • Package: Tray
  • Mounting: Through-hole mountable
  • Family Name: 090120
  • Package Quantity: 3000 pieces
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 8 weeks
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Alternative Part Numbers: 090120-0923, 0901200923-ND, 90120-0923, 901200923, and WM12813
