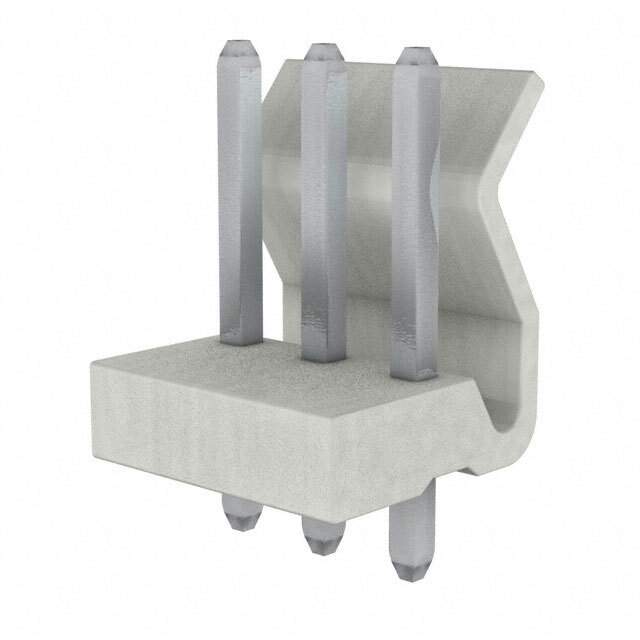

Same model may have multiple batches, images only for reference.

09-65-2038

Name: 09-65-2038
Brand: Molex, LLC
SKU: 1027621
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	09-65-2038
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	SPOX™ and KK® 396 Wire-to-Board Header, Vertical, with Friction Lock, 3 Circuits
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Natural
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	10 mΩ
Country of Origin	TW
Current Rating	7 A
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Halogen Free
Height	13.85 mm
Housing Color	Natural
Housing Material	Nylon
Lead Free	Yes
Lead Pitch	3.96 mm
Length	11.12 mm
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	250 V
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	2
Number of Contacts	3
Number of Pins	3
Number of Poles	3
Number of Positions	3
Number of Rows	1
Orientation	Vertical
Pitch	3.96 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Shape	Straight
Termination	Through Hole
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Width	10.75 mm
Win Source Part Number	1027621-09-65-2038
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 09-65-2038 CAD Model

Alternative Products

Description

The 1027621-09-65-2038 is manufactured by Molex.

Position: 3
Gender: Male
Pitch: 3.96 mm
Color: Natural
Contact Material: Brass
Voltage Rating: 250 V
Current Rating: 7 A
Contact Resistance: 10 mΩ
Housing Material: Nylon
Height: 13.85 mm
Width: 10.75 mm
Halogen-Free: Yes
RoHS: Compliant
Maximum Operating Temperature: 105 °C
Mount: Through-Hole
Suitable For: Circular Connectors - Housings
