Same model may have multiple batches, images only for reference.

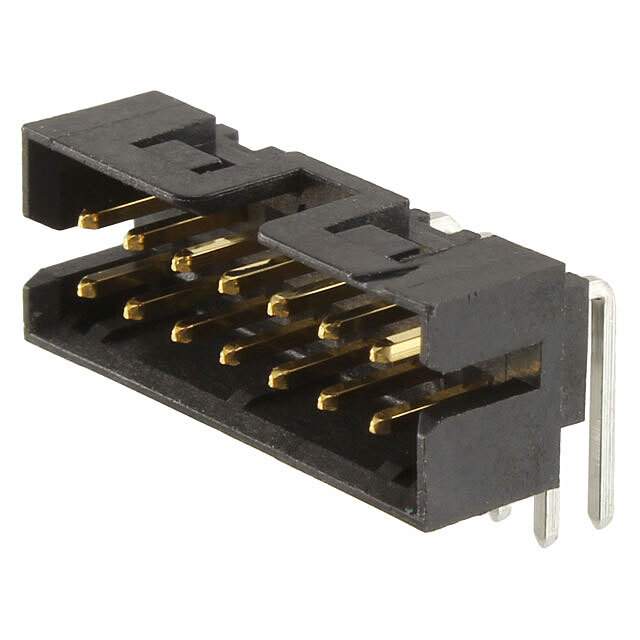

0878331420 Real Image
Same model may have multiple batches, images only for reference.

0878331420

Part No 0878331420
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 14POS 2MM / Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Milli-Grid 87833
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.085" (2.16mm)
Overall Contact Length -
Insulation Height 0.248" (6.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087833
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 32 pcs
Win Source Part Number 1380416-0878331420
Ultra Librarian 3D Model Ultra Librarian 0878331420 CAD Model

Description

The 1380416-0878331420 is a male pin header connector from Molex, LLC.

  • Series: Milli-Grid 87833
  • Positions: 14
  • Feature: Keying slot for secure mating and alignment
  • Rows: Two-row connector
  • Contacts: Male pins
  • Termination: Solder
  • Fastening Type: Latch holder
  • Package: Tube
  • Contact Material: Phosphor bronze
  • Voltage Rating: - (not specified)
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Housing Color: Black
  • Mounting: Through hole @ right angle
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold with a thickness of 15.0μin (0.38μm)
  • Contact Finish (Post): Tin with a thickness of 74.8μin (1.90μm)
  • Standard Package: 32 pieces
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected by REACH
  • HTSUS: 8536.69.4040
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Applications: Automotive, general purpose, and telecommunications
