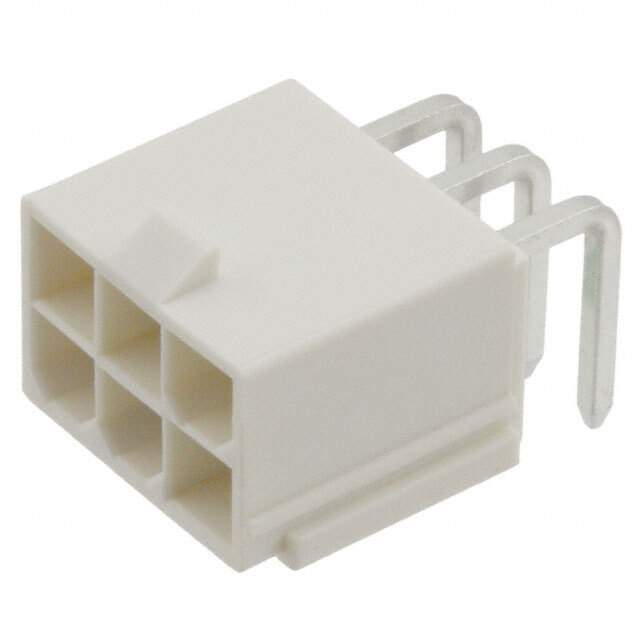

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Mini-Fit Jr 87427
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length -
Insulation Height 0.394" (10.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6
Features -
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 087427
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,260 pcs
Win Source Part Number 1381211-0874270602
Ultra Librarian 3D Model Ultra Librarian 0874270602 CAD Model

Description

The Mini-Fit Jr 87427 series header male pins connector is a versatile connector suitable for various applications.

  • Positions: 6
  • Features: Not specified
  • Connector Type: Header with Male Pins
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Locking: Locking Ramp
  • Package: Tray
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA46), Nylon 4/6
  • Style: Board to Cable/Wire
  • Pitch: 0.165" (4.20mm)
  • Contact Finish (Mating): Tin, 100.0µin (2.54µm)
  • Contact Finish (Post): Tin, 100.0µin (2.54µm)
  • Insulation Color: Beige
  • Mounting: Through Hole, Right Angle
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing (Mating): 0.165" (4.20mm)
  • Contact Length (Post): 0.130" (3.30mm)
  • Insulation Height: 0.394" (10.00mm)
  • Contact Shape: Square
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 087427
  • Standard Package: 1,260 pieces
