Same model may have multiple batches, images only for reference.

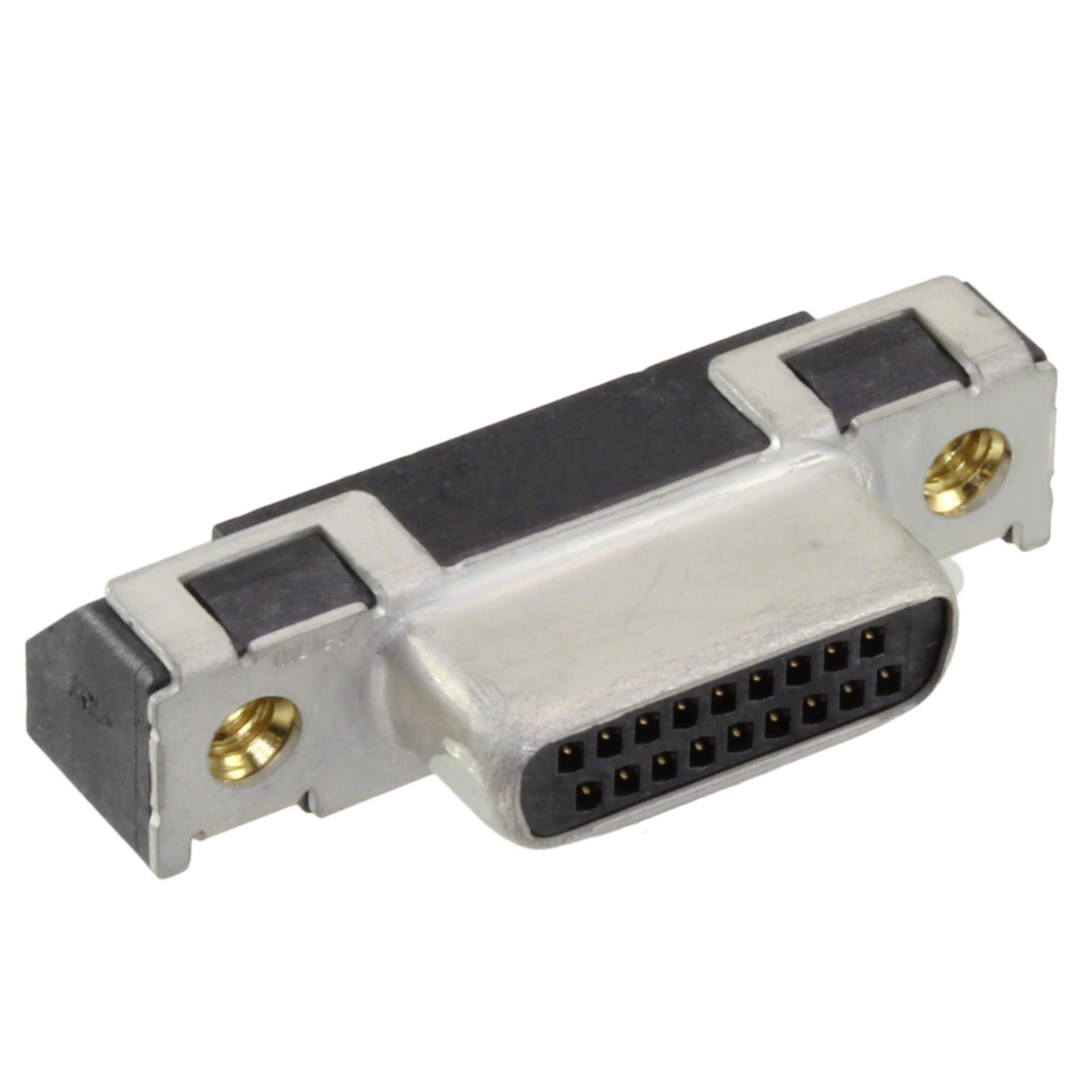

0749603018 Real Image
Same model may have multiple batches, images only for reference.

0749603018

Part No 0749603018
Manufacturer Molex, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 18P SMD R/A SLD / 18 Position D-Type Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Molex, LLC
Series PCI Express®, TDP™
Package Tape & Reel
Product Status Obsolete
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 18
Number of Rows 2
Mounting Type Panel Mount, Surface Mount, Right Angle
Shell Size, Connector Layout 0.050 Pitch x 0.065 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.5A
Features Board Lock, Shielded
Voltage Rating 40V
Color Black
Dielectric Material Polymer, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -20°C ~ 85°C
Base Product Number 074960
Standard Package 325 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853371-0749603018
Ultra Librarian 3D Model Ultra Librarian 0749603018 CAD Model

Description

The PCI Express® TDP™ D-Sub Connector Assembly is a high-quality and durable connector for your electronic devices.

  • Number of Positions: 18
  • Color: Black
  • Board Lock: Yes
  • Shielded: Yes
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Termination Style: Solder
  • Contact Finish: Gold with a thickness of 15.0µin (0.38µm)
  • Package Quantity: 325 pcs
  • Mounting Options: Panel Mount, Surface Mount, and Right Angle
  • Temperature Range: -20°C to 85°C
