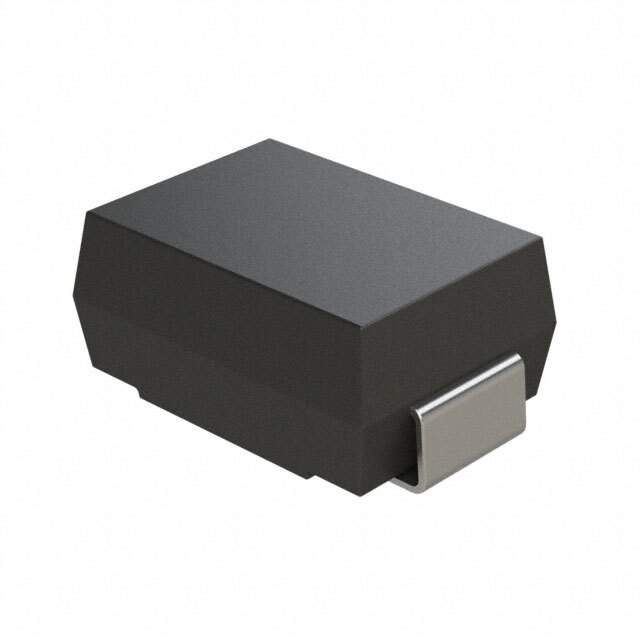

15BJ18CA Real Image
Same model may have multiple batches, images only for reference.

15BJ18CA

Part No 15BJ18CA
Manufacturer Eaton Bussmann
Catalog TVS - Diodes
Description TVS DIODE 18VWM 29.2VC SMBF  /  29.2V Clamp 51.4A Ipp Tvs Diode Surface Mount SMBF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Eaton - Electronics Division
Series 15BJ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 29.2V
Current - Peak Pulse (10/1000µs) 51.4A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications Telecom
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-221AA, SMB Flat Leads
Supplier Device Package SMBF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 283-15BJ18CATR
Standard Package 3,000
Win Source Part Number 1034849-15BJ18CA
Ultra Librarian 3D Model Ultra Librarian 15BJ18CA CAD Model

Description

This electronic component is a Zener diode TVS circuit protection, part number 1034849-15BJ18CA. This 1034849-15BJ18CA Zener diode TVS is a circuit protection device.

  • Series: 15BJ
  • Application: telecom
  • Packaging: tape and reel (TR)
  • Package: 3,000
  • Voltage Reverse Standoff: 18V
  • Voltage Breakdown: 20V
  • Voltage Clamping: 29.2V @ Ipp
  • Power Peak Pulse: 1500W (1.5kW)
  • Current Peak Pulse: 51.4A
  • Mounting: SMD (SMT)
