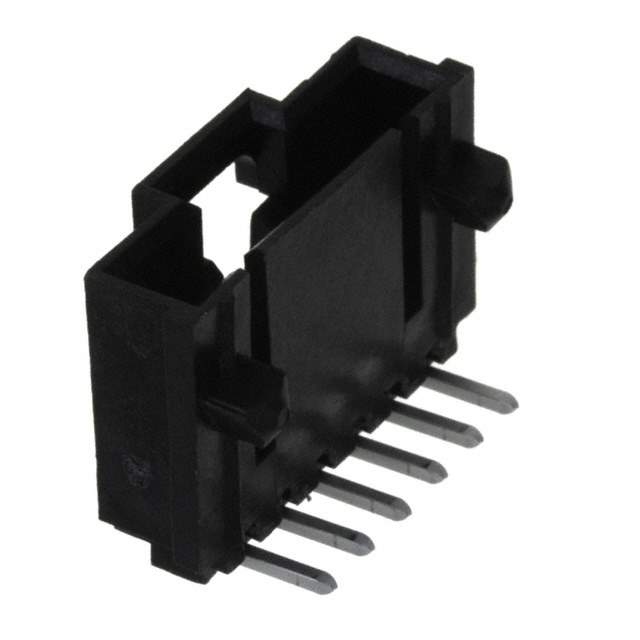

0705550040 Real Image
Same model may have multiple batches, images only for reference.

0705550040

Part No 0705550040
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.54MM / Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series SL 70555
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.215" (5.45mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 070555
Standard Package 28 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857030-0705550040
Ultra Librarian 3D Model Ultra Librarian 0705550040 CAD Model

Description

The SL 70555 series male pin header is a reliable and versatile connector designed for use in various electronic applications.

  • Positions: 6
  • Features: Board Guide, Latch Holder
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 250V
  • Insulation Material: Polyester and Glass Filled
  • Mounting: Through-Hole, Right Angle
  • Insulation Color: Black
  • Design: Shrouded 4-Wall
  • Applications: Automotive, General Purpose, Industrial, Medical
  • Standard Package: 28 pieces
