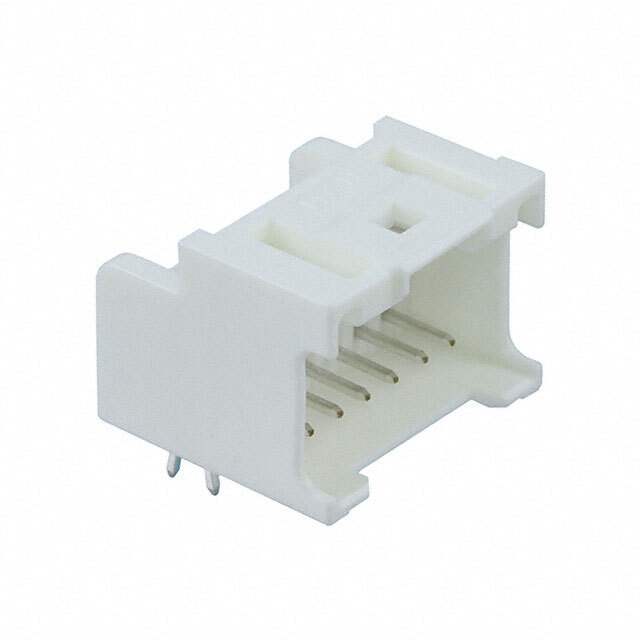

055959-1230 Molex
Same model may have multiple batches, images only for reference.

055959-1230

Part No 055959-1230
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207214-055959-1230
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series MicroClasp 55959
Package Tray
Product Status Active
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Row Spacing - Mating 0.197" (5.00mm)
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 055959-1230 CAD Model

Description

Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
