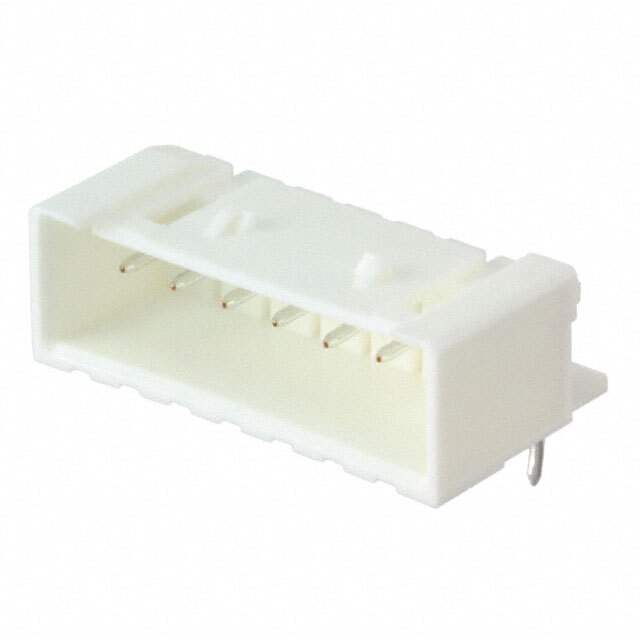

Same model may have multiple batches, images only for reference.
0534260710 Molex
Same model may have multiple batches, images only for reference.

0534260710

Part No 0534260710
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 7POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207177-0534260710
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series Mini-Lock 53426
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Shrouding Shrouded - 4 Wall
Termination Kinked Pin, Solder
Ultra Librarian 3D Model Ultra Librarian 0534260710 CAD Model

Description

Connector Header Through Hole, Right Angle 7 position 0.098" (2.50mm)
