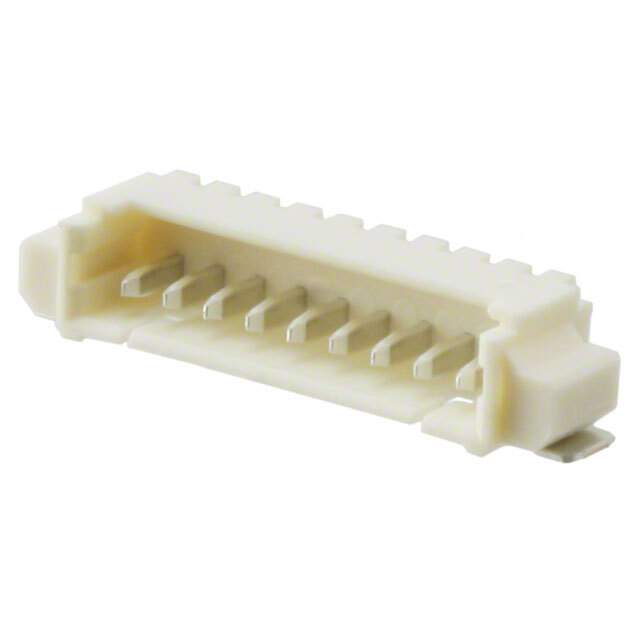

0532610971

Name: 0532610971
Brand: Molex, LLC
SKU: 538010
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0532610971
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	1.25mm (.049") Pitch PicoBlade™ Header, Surface Mount, Right Angle, Lead-free, 9Circuits \| CONN HEADER SMD R/A 9POS 1.25MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.049" (1.25mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	SMT, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.134" (3.40mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4μin (1.00μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA46), Nylon 4/6
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	Automotive, General Purpose, Industrial, Medical
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1120698-0532610971
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 0532610971 CAD Model

Description

The Molex header connector is a reel-packaged connector with 9 positions loaded with male blades.

Positions Loaded: 9
Blade Type: Male
Termination: Solder
Fastening Type: Detent Lock
Pitch-Mating: 0.049 inches
Insulation Height: 0.134 inches
Applications: Automotive, General Purpose, Industrial, Medical
Shroud: 4 Walls
Solder Retention: Yes
Contact Finish-Mating: Tin
Insulation Material: Polyamide (PA46) and Nylon 4/6
