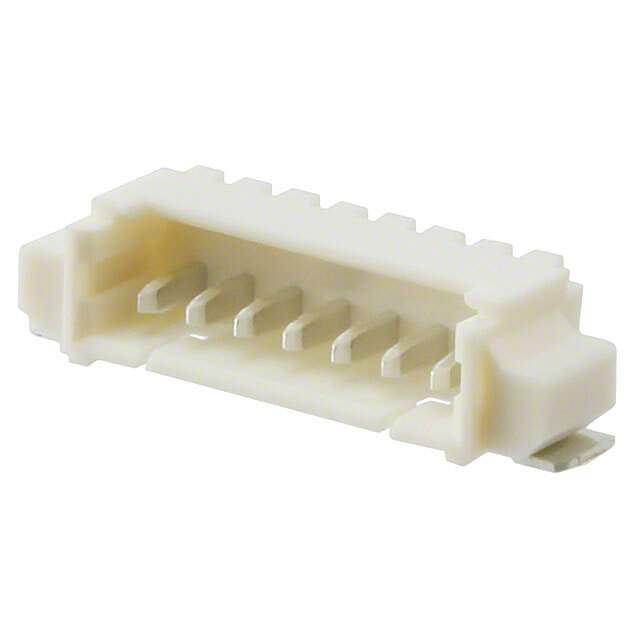

0532610771 Real Image1 0532610771 Real Image2
Same model may have multiple batches, images only for reference.
0532610771 Real Image1 0532610771 Real Image2
0532610771 Real Image1 0532610771 Real Image2
Same model may have multiple batches, images only for reference.

0532610771

Part No 0532610771
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 1.25MM / Connector Header Surface Mount, Right Angle 7 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series PicoBlade 53261
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.049" (1.25mm)
Number of Positions 7
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.134" (3.40mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 053261
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000 pcs
Win Source Part Number 1380392-0532610771
Ultra Librarian 3D Model Ultra Librarian 0532610771 CAD Model

Description

The PicoBlade 53261 series is a compact and reliable range of connectors designed for various electronic applications.

  • Manufacturer: Molex, LLC
  • Positions: 7
  • Features: Solder Retention
  • Fastening Type: Detent Lock
  • Contact Material: Phosphor Bronze
  • Pitch: 0.049" (1.25mm)
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA46), Nylon 4/6
  • Application: Automotive, General Purpose, Industrial, Medical
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1,000 Pieces
  • Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Mounting Type: Surface Mount, Right Angle
