Same model may have multiple batches, images only for reference.

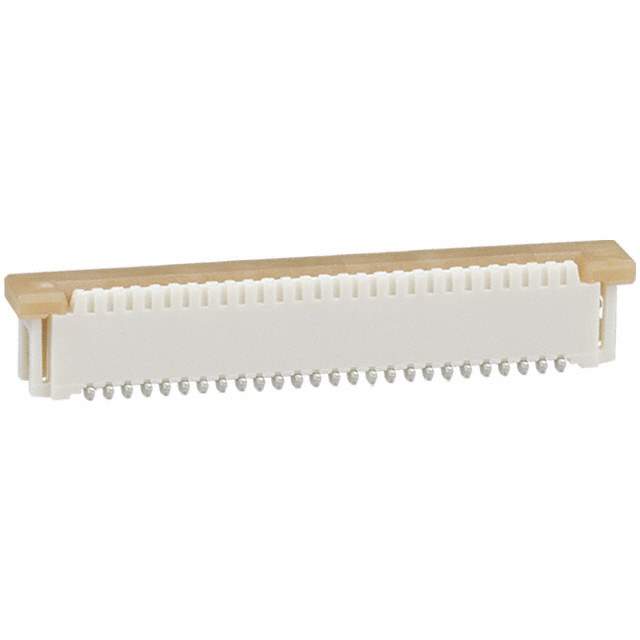

0526102671 Real Image
Same model may have multiple batches, images only for reference.

0526102671

Part No 0526102671
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC VERT 26POS 1.00MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 26 Position - Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Manufacturer Molex, LLC
Series Easy-On 52610
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name 052610
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number WM7643TR, WM7643CT, 0526102671-C, 52610-2671-C, 526102671-C, 052610-2671-C, 526102671, WM7643DKR, 052610-2671, 52610-2671
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907258-0526102671
Ultra Librarian 3D Model Ultra Librarian 0526102671 CAD Model

Description

This Molex, LLC connector is from the Easy-On 52610 series.

  • Manufacturer: Molex, LLC
  • Series: Easy-On 52610 series
  • Orientation: vertical orientation
  • Connector Contacts: 26 connector contacts
  • Sided: 1-sided
  • Surface Mount: 0.039" (1.00mm) surface mount
  • RoHS: RoHS compliant
  • Package: reel-TR package
  • Quantity per Package: 1000
  • HTSUS: HTSUS 8536.69.4051 compliant
