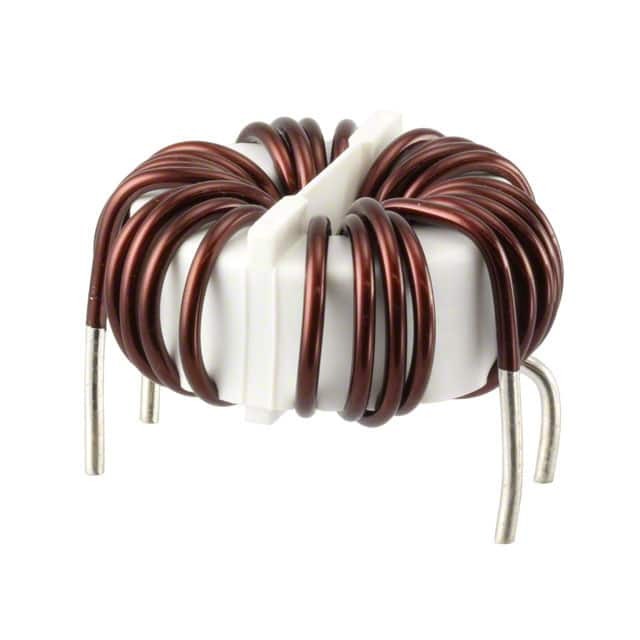

SC-30-100 Kemet
Same model may have multiple batches, images only for reference.

SC-30-100

Part No SC-30-100
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 30A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 2.441" Dia (62.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-30
Other Names UALSC301000000,399-10619
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277087-SC-30-100
Ultra Librarian 3D Model Ultra Librarian SC-30-100 CAD Model

Description

The KEMET Common Mode Choke is a power line filter type component that helps in reducing electromagnetic interference in electronic circuits.

  • Maximum Current Rating: 30A
  • Voltage Rating: 250V AC/DC
  • Mounting Type: Through-hole
  • Package: Bulk
  • DC Resistance: 6mOhm
  • Inductance: 1 mH @ 100 kHz frequency
  • Lines: 2-line configuration
  • Height: 35.00mm
  • Temperature Range: -25°C to 105°C
  • Diameter: 62.00mm
