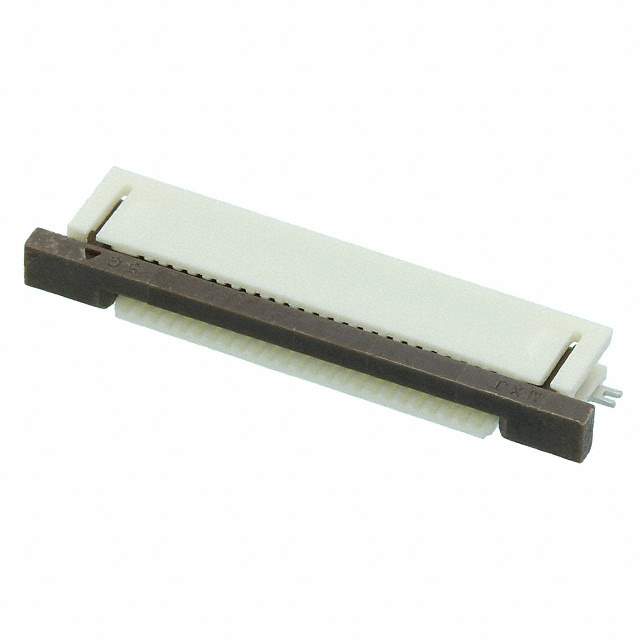

Same model may have multiple batches, images only for reference.

0524372571

Name: 0524372571
Brand: Molex, LLC
SKU: 856426
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0524372571
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 25POS 0.5MM R/A / 25 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Molex, LLC
Series	Easy-On 52437
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	25
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	White
Actuator Color	Brown
Mating Cycles	20
Base Product Number	052437
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	856426-0524372571
Ultra Librarian 3D Model	Ultra Librarian 0524372571 CAD Model

Alternative Products

Description

The Easy-On 52437 is a FFC, FPC (Flat Flexible) connector assembly from Molex, LLC.

Manufacturer: Molex, LLC
Product: Easy-On 52437
Connector Type: FFC, FPC (Flat Flexible)
Positions: 25
Pitch: 0.020" (0.50mm)
Termination: Solder
Contact Finish: Gold
Package: Tape & reel
Voltage Rating: 50V
Height Above Board: 0.079" (2.00mm)
Contact Type: Bottom
FFC, FCB Thickness: 0.30mm
Locking Feature: Slide Lock
Cable End Type: Straight, Tapered
Housing Material: Polyamide (PA46), nylon 4/6, glass filled
Flammability Rating: UL94 V-0
Housing Color: White
Package Size: 1,000 pcs
Status: Active
ECCN: EAR99
HTSUS Code: 8536.69.4051
