Same model may have multiple batches, images only for reference.

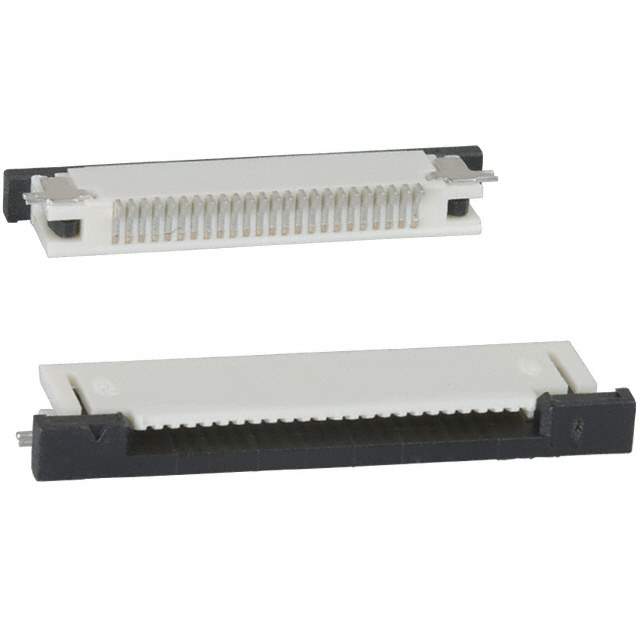

0524352472 Real Image
Same model may have multiple batches, images only for reference.

0524352472

Part No 0524352472
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC TOP 24POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 24 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Molex, LLC
Series Easy-On 52435
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name 052435
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number WM7711DKR, 524352472, 052435-2472-C, 0524352472-C, 900-0524352472TR, 524352472-C, WM7711TR, 052435-2472, WM7711DKR-ND, WM7711CT-ND, WM7711TR-ND, 52435-2472-C, WM7711CT, 900-0524352472CT, 900-0524352472DKR, 52435-2472
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907234-0524352472
Ultra Librarian 3D Model Ultra Librarian 0524352472 CAD Model

Description

The Molex Easy-On 52435 series 24 position FFC, FPC Connector Contacts is a surface mount, right angle connector that operates in a temperature range of -40°C to 85°C.

  • Series: Easy-On 52435
  • Positions: 24
  • Connector Type: FFC, FPC Connector Contacts
  • Mounting Style: Surface Mount, Right Angle
  • Operating Temperature: -40°C to 85°C
  • Mounting: Top 0.020" (0.50mm) Surface Mount
  • Packaging: Reel - TR
  • Part Status: Obsolete
  • Family Name: 052435
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4051
  • Package Quantity: 1000
  • MSL Level: 1 (Unlimited)
  • Other Part Numbers: WM7711DKR, 524352472, 052435-2472-C, 0524352472-C, 900-0524352472TR, 524352472-C, WM7711TR, 052435-2472, WM7711DKR-ND, WM7711CT-ND, WM7711TR-ND, 52435-2472-C, WM7711CT, 900-0524352472CT, 900-0524352472DKR
