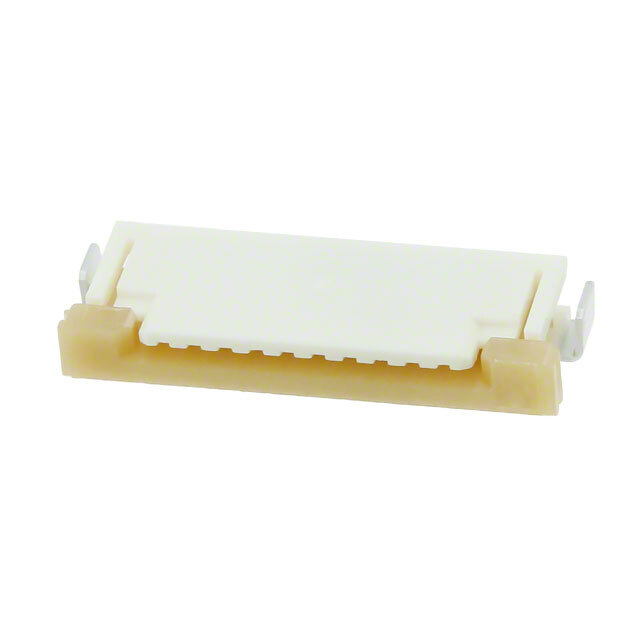

0522071060

Name: 0522071060
Brand: Molex, LLC
SKU: 537999
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0522071060
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	1.00mm (.039") Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact Style Receptacle, 10 Circuits, Lead-free, Gold Contact Plating, High Barrier Packaging \| CONN FFC FPC TOP 10POS 1MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Flat Flex Type	FFC, FPC
Mounting Style	SMT, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	10
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.106" (2.70mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Dielectric Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	125V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	3.94μin (0.10μm)
Mating Cycles	30
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1120687-0522071060
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 0522071060 CAD Model

Alternative Products

Description

This electronic component is a connector that is manufactured by Molex.

Positions: 10
Packaging: Reel
Mounting Style: SMT with a right angle
Pitch: 0.039 inches
Contact Finish: Gold
Voltage Rating: 125V
Current Rating: 1A
Flat Flex Types: FFC and FPC
Slide Lock: Yes
Tapered Cable End Type: Yes
ROHS Compliant: Yes
Popularity: Medium
