Same model may have multiple batches, images only for reference.

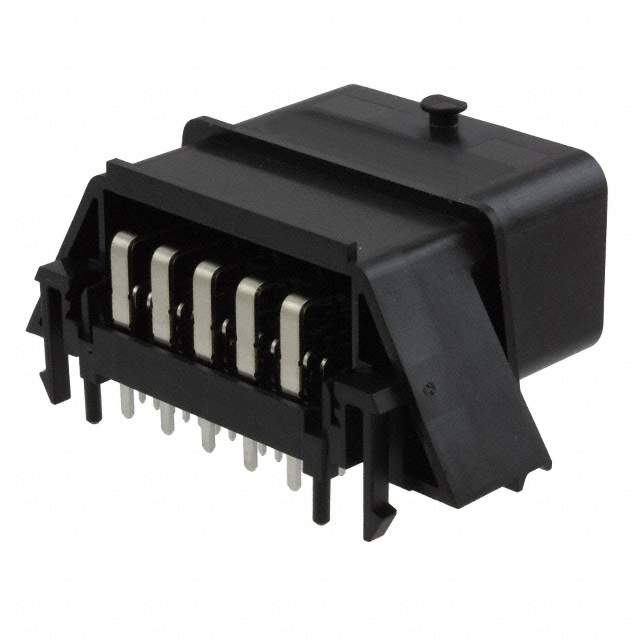

0477450100 Real Image
Same model may have multiple batches, images only for reference.

0477450100

Part No 0477450100
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER BRD EDGE 28POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 12 Weeks
Features Connector Header Board Edge, Through Hole, Right Angle 28 position -
Manufacturer Molex, LLC
Series CMC 47745
Package Box
Mounting Board Edge, Through Hole, Right Angle
Family Name 047745
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM9447, 47745-0100, 477450100
Quantity per package 120
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844090-0477450100
Ultra Librarian 3D Model Ultra Librarian 0477450100 CAD Model

Description

The Molex CMC 47745 series connector header is a high-quality electronic component that is widely used in various electronic applications.

  • Mounting Style: Board Edge Through Hole, Right-Angle
  • Position Count: 28
  • Applications: Power Supplies and Audio Circuits
  • Manufacturer: Molex
  • Popularity: Medium
  • Supply and Demand: Limited
