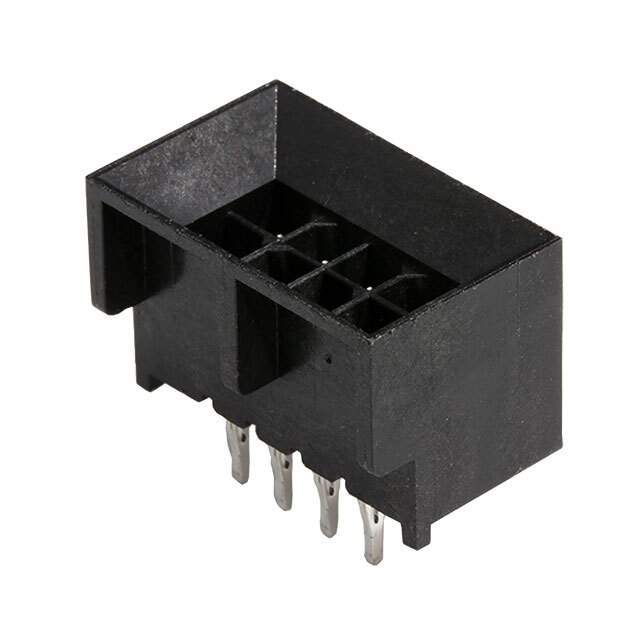

0452800852 Real Image
Same model may have multiple batches, images only for reference.

0452800852

Part No 0452800852
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 3MM / Connector Header Through Hole 8 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Micro-Fit 3.0 BMI CPI 45280
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Push-Pull
Contact Length - Mating -
Contact Length - Post 0.193" (4.90mm)
Overall Contact Length -
Insulation Height 0.457" (11.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Blind Mating, Board Guide
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 10.0µin (0.25µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 045280
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 714 pcs
Win Source Part Number 1380376-0452800852
Ultra Librarian 3D Model Ultra Librarian 0452800852 CAD Model

Description

The Micro-Fit 3.0 BMI CPI 45280 series is a range of male pin headers from Molex, LLC. These headers are widely used in general purpose, medical, military, and telecommunications applications.

  • Series: Micro-Fit 3.0 BMI CPI 45280
  • Applications: General Purpose, Medical, Military, Telecommunications
  • Positions: 8
  • Rows: Dual
  • Features: Blind Mating, Board Guide
  • Contact Material: Copper Alloy
  • Pitch: 0.118" (3.00mm)
  • Mounting Type: Through-Hole
  • Flammability Rating: UL94 V-0
  • Packaging: Tray
  • Standard Package: 714 pcs
  • Connector Type: Header, Male Pins
  • Manufacturer: Molex, LLC
