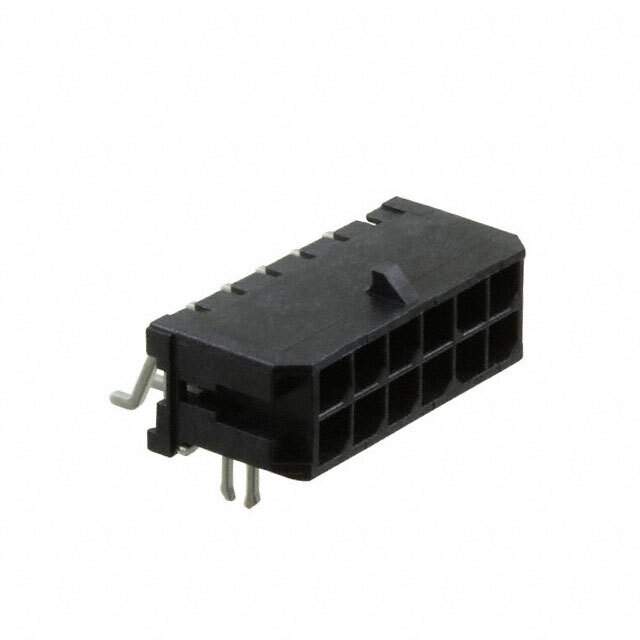

Same model may have multiple batches, images only for reference.

0430451208

Name: 0430451208
Brand: Molex, LLC
SKU: 537929
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0430451208
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Right Angle, with Press-fit Metal Retention Clip, 12 Circuits \| CONN HEADER SMD R/A 12POS 3MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	SMT, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	8A
Voltage Rating	600V
Contact Finish Thickness - Post	100.0μin (2.54μm)
Applications	General Purpose, Medical, Military, Telecommunications
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1120617-0430451208
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 0430451208 CAD Model

Description

The Molex 1120617-0430451208 is a male pin header connector with a right-angle mounting style.

Number of Positions: 12
Number of Rows: 2
Termination: Solder
Contact Material: Brass
Voltage Rating: 600V
Current Rating: 8A
Applications: General purpose, medical, military, and telecommunications
Pitch-Mating: 0.118" (3.00mm)
Contact Finish-Mating: Gold with a thickness of 30.0μin (0.76μm)
Supply and Demand Status: Limited
