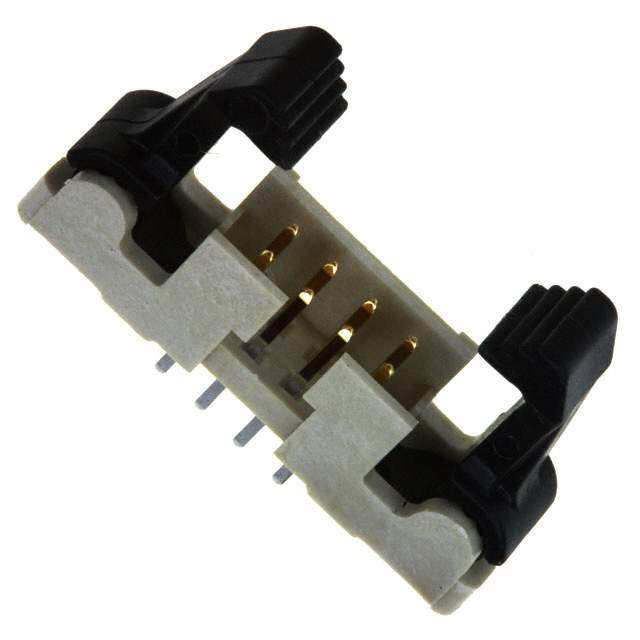

Same model may have multiple batches, images only for reference.

10078991-G22-08ULF

Name: 10078991-G22-08ULF
Brand: Amphenol
SKU: 1348764
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	10078991-G22-08ULF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2MM / Connector Header Through Hole 8 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek® 2.00mm
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.098" (2.50mm)
Insulation Height	0.232" (5.90mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Cream
Current Rating (Amps)	2A (AC/DC)
Voltage Rating	200V (AC/DC)
Base Product Number	10078991
Standard Package	26
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348764-10078991-G22-08ULF
Ultra Librarian 3D Model	Ultra Librarian 10078991-G22-08ULF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 10078991-G22-08ULF is a male pin header connector with 8 positions.

Number of Positions: 8
Pitch: 0.079" (2.00mm)
Mounting Type: Through Hole
Design: Shrouded 4-Wall
Fastening Type: Latch Lock/Eject Hooks, Short
Voltage Rating: 200V (AC/DC)
Current Rating: 2A (AC/DC)
Contact Material: Copper Alloy
Contact Finish: Gold, GXT™
Finish Thickness: 30.0μin (0.76μm)
Insulation Material: Thermoplastic
Flammability Rating: UL94 V-0
Package: Tube
Standard Package: 26
