Same model may have multiple batches, images only for reference.

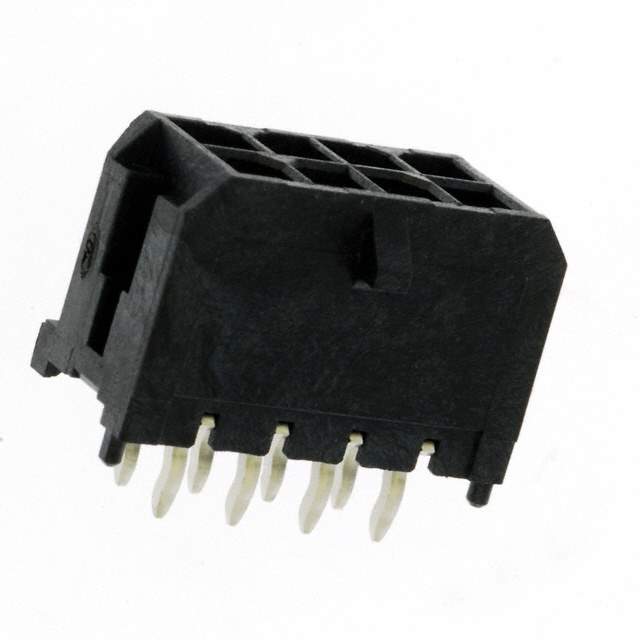

0430450813 Real Image
Same model may have multiple batches, images only for reference.

0430450813

Part No 0430450813
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 3MM / Connector Header Through Hole 8 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Micro-Fit 3.0 43045
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length -
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 043045
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,440 pcs
Win Source Part Number 1380818-0430450813
Ultra Librarian 3D Model Ultra Librarian 0430450813 CAD Model

Description

The Micro-Fit 3.0 43045 series is a header connector designed for male pin applications.

  • Connector Type: Header, Male Pins
  • Series: Micro-Fit 3.0 43045
  • Number of Positions: 8
  • Pitch: 0.118" (3.00mm)
  • Board Guide: Yes
  • Material - Insulation: Liquid Crystal Polymer (LCP)
  • Mounting Type: Through Hole
  • Style: Shrouded - 4 Wall
  • Operating Temperature: -40°C ~ 105°C
  • Application: Automotive, General Purpose, Industrial, Medical, Telecommunications
  • Packaging: Tray
  • Contact Finish: Gold
  • Manufacturer: Molex, LLC
