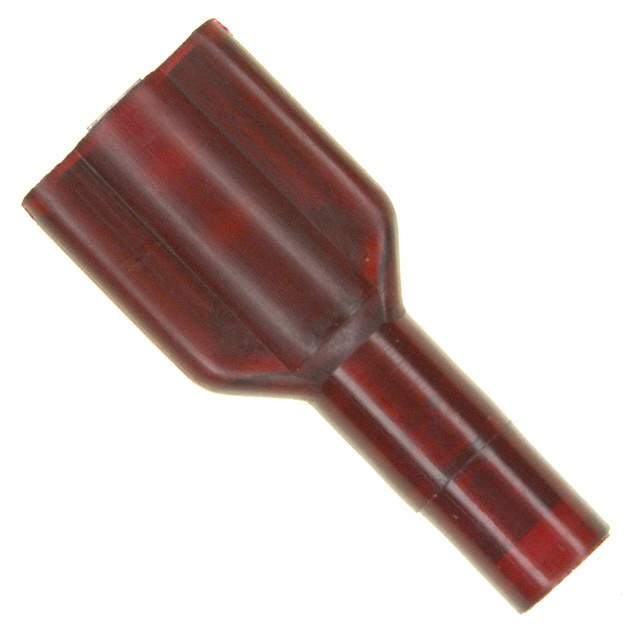

0190020002 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Molex, LLC
Series Avikrimp
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.890" (22.61mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" (3.05mm)
Base Product Number 019002
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 850316-0190020002
Ultra Librarian 3D Model Ultra Librarian 0190020002 CAD Model

Description

The Avikrimp Quick Disconnect Connector is a reliable and efficient solution for your electrical connection needs.

  • Wire Gauge: 18-22 AWG
  • Design: Fully Insulated
  • Connector Type: Female
  • Material: Brass
  • Contact Finish: Tin
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.890" (22.61mm)
  • Mounting: Free Hanging (In-Line)
  • Package: 1,000 pcs
